Arrma

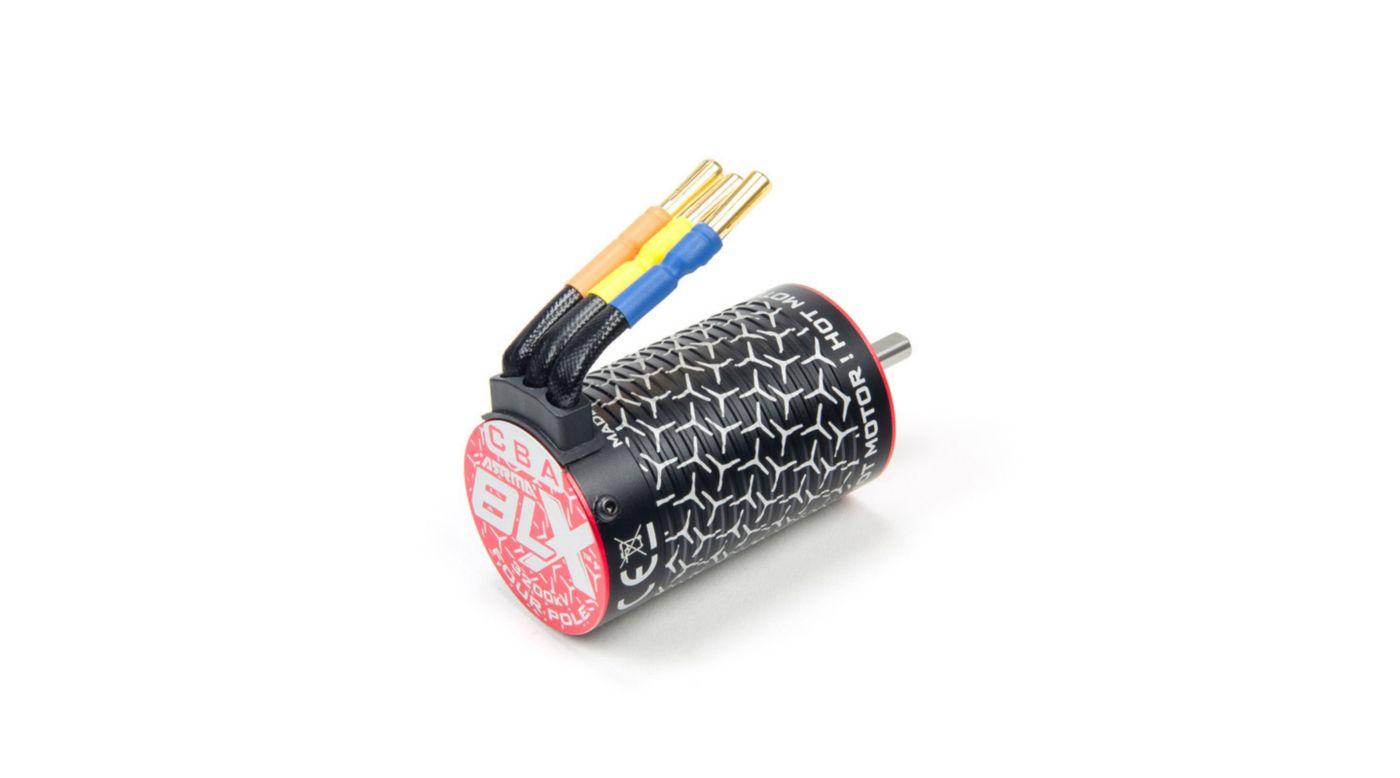

BLX3660 3200kV Brushless 1/10 4-Pole Motor
Car Brushless Motors Item Code: ARAG1023
$262.75
Out of stock
Stock held at NZ supplier:
Can be back‑ordered with supplier
OVERVIEW:
The BLX 3660kV brushless motor provides lots of speed and torque, and is perfectly balanced for use with the ARRMA BLX100 ESC unit.
FEATURES:A beautifully etched black aluminum motor can provides a premium look, while a 4 pole internal configuration keeps the power supply smooth and consistent - Gold bullet connectors ensure fast and easy wire removal when you need to clean your vehicle - The aluminum motor can provides increased heat dissipation via the finned body section
SPECIFICATION
| Motor Type | Brushless |
| Motor kV (# of Turns for brushed) | 3200V |
| Poles | 4 Pole |
| Motor Length | 60mm / 2.36" |
| Diameter | 30mm / 1.18" |
| Shaft Length | 18.5mm / 0.73" |
| Shaft Diameter | 5mm / 0.2" |
| Motor Mounting Hole Diameter | M3 |
| Motor Cable Length (Including Connector) | 45mm / 1.77" |
| Motor Connector Diameter | 4mm / 0.16" |
| Motor Weight | 289g / 9.18 oz |
