RJ Speed
13" Funny Car Dragster Kit
Oval and Drag Kits Item Code: RJS2002
$437.40
Out of stock
Stock held at NZ supplier:
Can be back‑ordered with supplier

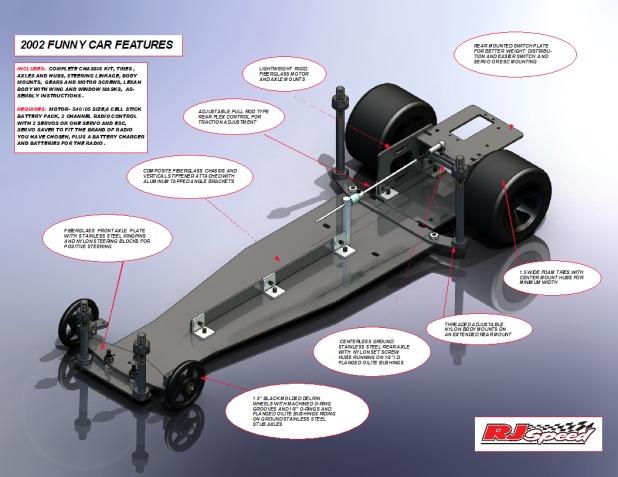

Key Features
- Chassis: Computer cut composite fiberglass chassis
- Drive: Rear wheel
- Brass bushings support the rear axle and front wheels
- Suspension: Adjustable pull rod rear suspension
- Gearbox: Open with rear pinion and spur gear
- Differentials: No differential model has a solid rear axle
- Tires: 1/10 scale foam pan car style on black rims on the rear and rubber o-ring style tires on black rims on the front
- Wheels: Black plastic, multi-spoke on front and rear
- Suspension: Adjustable pull rod type
- Camber Tie Rods: Fixed
- Steering Tie Rods: Adjustable
- Servo Saver: Required for steering servo (NOT INCLUDED)
- Length: 19.5" (495mm)
- Wheelbase: 11" (279mm)
- Gear Ratio: 4.05:1
- Tires- Front: 1.5" diameter O-Ring style Rear: 1/10 scale on-road foam style (4 bolt hub style)
- BODY- Length: 19.5" (495mm) Width: 7" (178mm) Height: 4" (101mm)
In The Box
- One 13" Wheelbase Funny Car Kit
- mounted rear foam tires
- front o-ring tires and wheels
- 81 tooth spur gear (48P)
- 20 tooth pinion (48p)
- brass bushings
- clear polycarbonate body with window mask and wing
- product manual
Needed to Complete
- Radio: 2-Channel with 1 Servo (two servos required if you are going to be using a micro switch instead of a speed control.
- Radio Batteries: (8) AA size
- Motor: 550 size motor of modelers choice
- Battery: 6-cell stick or side-by-side with standard connector
- Charger: AC/DC timed or peak for 6-cell battery
- Paint: Polycarbonate paint of modelers choice
- Misc. Items: Building and track equipment
