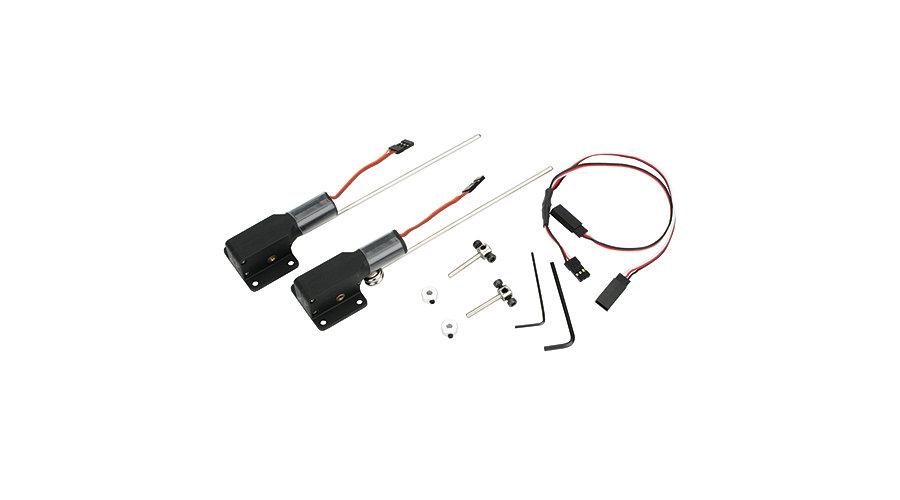

Eflite
10 to 15 - Size Main Electric Retracts
Retracts Item Code: EFLG100
$195.65
Out of stock
Stock held at NZ supplier:
Can be back‑ordered with supplier
Key Features
Detailed Information
- Robust landing gear strut and mounting bracket
- Integrated electric motor with a micro PCB
- Built-in over-current protection
- Aircraft weight: 2.00�4.50 lb (0.90�2.00 kg)
- Strut diameter 0.118 in (3mm)
- Strut length 0.866 in (22mm)
You don�t have to be a master modeler to add the realism of functioning retracts to your airplane. The completely self-contained E-flite��retract system requires no air tank, complex linkages or extra servo. It can simply be bolted into place and plugged into the receiver. A specially-designed Y-harness is included that allows for the use of a single receiver channel to control all retract units.
10-15 Size Main Retract Units (mm)
Specs
Application:
Connector Type:
Current Draw Idle:
Current Draw Stall:
Landing Gear Parts:
Motor Type:
Speed:
Voltage:
Weight:
| Aircraft 10�15 size |
| Universal |
| 5mA |
| 200mA |
| Retracts |
| Electric brushed can |
| 4.8V (1.25 sec), 6.0V (1.0 sec), 7.4V (.80 sec) |
| 4.8 - 7.4V |
| Complete Set: 4.2 oz (119 g); Nose Gear: 1.6 oz (45 g); Main gear 1.3 oz (37 g) each |
