KV Rating: 1900 KV

Turns: 11.5

Weight: 30g

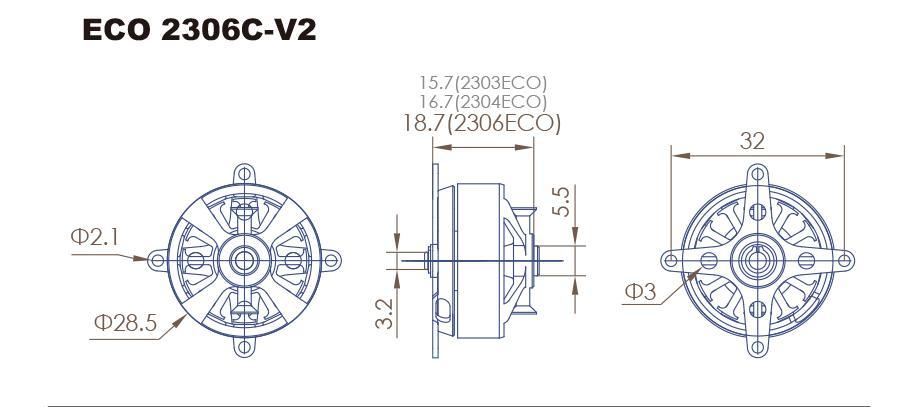

Dimensions (D x L): 28.8 x 20.9 mm

Slots & Poles: 12N14P

Internal Resistance (Ri): 90.6 mΩ

No Load Current @10V (Io): 0.8 A

Number of LiPo Cells: 2–3S

Max. Efficiency Current: 11 A

Max. Burst Current (15S): 18 A

Max. Power (15S): 144 W

Max. Torque: 0.109 N·m

Shaft Diameter: 3.175 mm

Mounting Hole Pitch: 32 mm

Input Connectors: GC2.0

Recommended ESC: XC-22-LITE or XC1218BA

Recommended Propellers:

• 2S: 8×4E, 9×4E

• 3S: 6×3E, 6×5.5E

Application Class: 200–300g airplanes (e.g., popular EPP profile planes)
