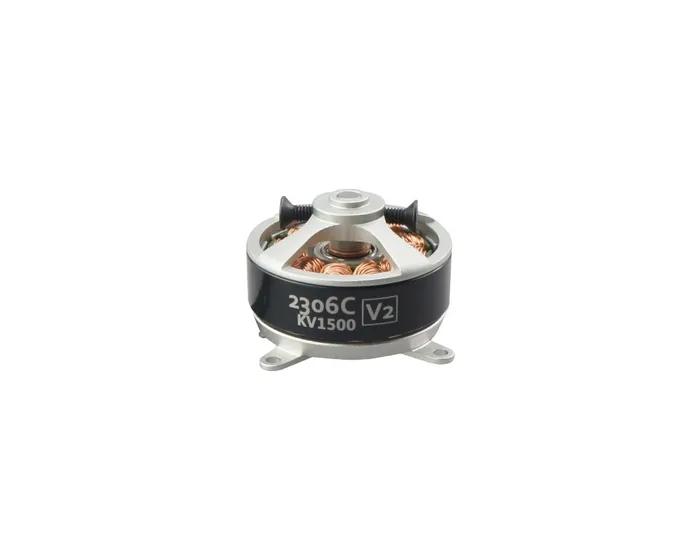

KV Rating: 1500 KV

Turns: 11

Weight: 47g

Dimensions (D x L): 28.8 x 24.9 mm

Slots & Poles: 12N14P

Internal Resistance (Ri): 78.0 mΩ

No Load Current @10V (Io): 0.7 A

Number of LiPo Cells: 2–3S

Max. Efficiency Current: 14 A

Max. Burst Current (15S): 23 A

Max. Power (15S): 184 W

Max. Torque: 0.176 N·m

Shaft Diameter: 3.175 mm

Mounting Hole Pitch: 16/16

Input Connectors: GC3.5

Recommended ESC: XC-12-LITE or XC1218BA

Recommended Propellers:

• 2S: 10×5E, 11×5E

• 3S: 8×4E, 9×4.7E

Application Class: 400-600g 300E class
