Dual Sky

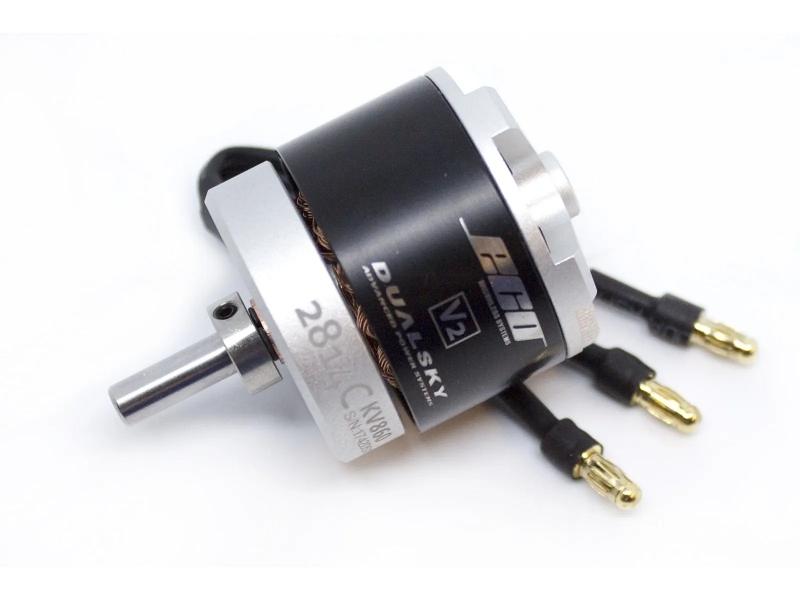

ECO V2 2820C 1120kv 540w Brushless Outrunner Motor
Aircraft/Heli/Drone Brushless Motors Item Code: DSM-51663
$114.45
Out of stock
Stock held at NZ supplier:
2
Product Name: ECO 2814C-V2 Brushless Motor SKU: 51660 KV Rating: 1120 KV Turns: 6.5 Weight: 105 g Dimensions (D × L): 35.2 × 34.2 mm Slots & Poles: 12N14P Internal Resistance (Ri): 37.8 mΩ No-load Current (Io @10V): 1.2 A LiPo Cell Count: 2–3S Max Efficiency Current: 22 A Burst Current (15s): 36 A Peak Power (15s): 432 W Peak Torque: 0.37 N·m Shaft Diameter: 5 mm Mounting Hole Pitch: 19/19 mm Input Connectors: GC3.5 Recommended ESC: XC-45-LITE or XC4018BA Recommended Propellers:
- 3S: 9×6E, 10×6E
- 4S: 11×4.5E
Class: .10–.15 Class
