Eflite
Park 400 Brushless Outrunner Motor, 740Kv, 2-3S Lipo, Shaft 1/8 in (3.17mm) 2-3S Prop 10x7 - 12x3.8
Aircraft/Heli/Drone Brushless Motors Item Code: EFLM1300
$110.45
Out of stock
Stock held at NZ supplier:
Can be back‑ordered with supplier
Key Features
Needed To Complete
Overview

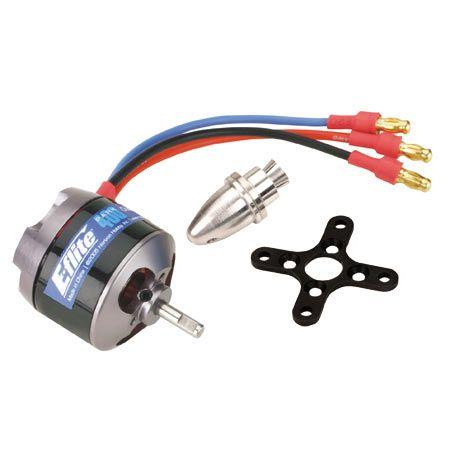

- Slotted 12-pole outrunner design
- Prop adapter (EFLM1923) and gold-plated connectors included
- Excellent motor for small 3D and scale park flyers weighing 10–20 oz (280–560 g)
- Motor mount included
- Replacement for Speed 370 and Speed 400 applications
- Quiet operation\low noise compared to gearbox systems
10–20A brushless ESC
10x7 to 12x3.8 prop 7.4V or 11.1V 860–1320mAh Li-Po
The great performance and small size of this engine makes it perfect for small 3D and other park flyer models. The external rotor design eliminates the need for a gearbox, saving you valuable weight to get the maximum performance out of the model.
| Bearings or Bushings: | One 3.175 x 7.94 x 3.6 Bearing and One 3.175 x 9.525 x 3.97 Bearing |
| Cells: | 6–10 Ni-Cd/Ni-MH or 2–3 Li-Po |
| Diameter: | 1.1 in (28mm) |
| Idle Current (Io): | .55 @ 10V (no load current) |
| Overall Diameter: | 1.10 in (28mm) |
| RPM/Volt (Kv): | 740 (rpms per volt) |
| Recommended Prop Range: | 10x4.7-12x3.8 |
| Resistance: | .26 ohms |
| Shaft Diameter: | 1/8 in (3.17mm) |
| Size: | Replacement for 370/400 |
| Voltage: | 7.2–12 |
