Eflite

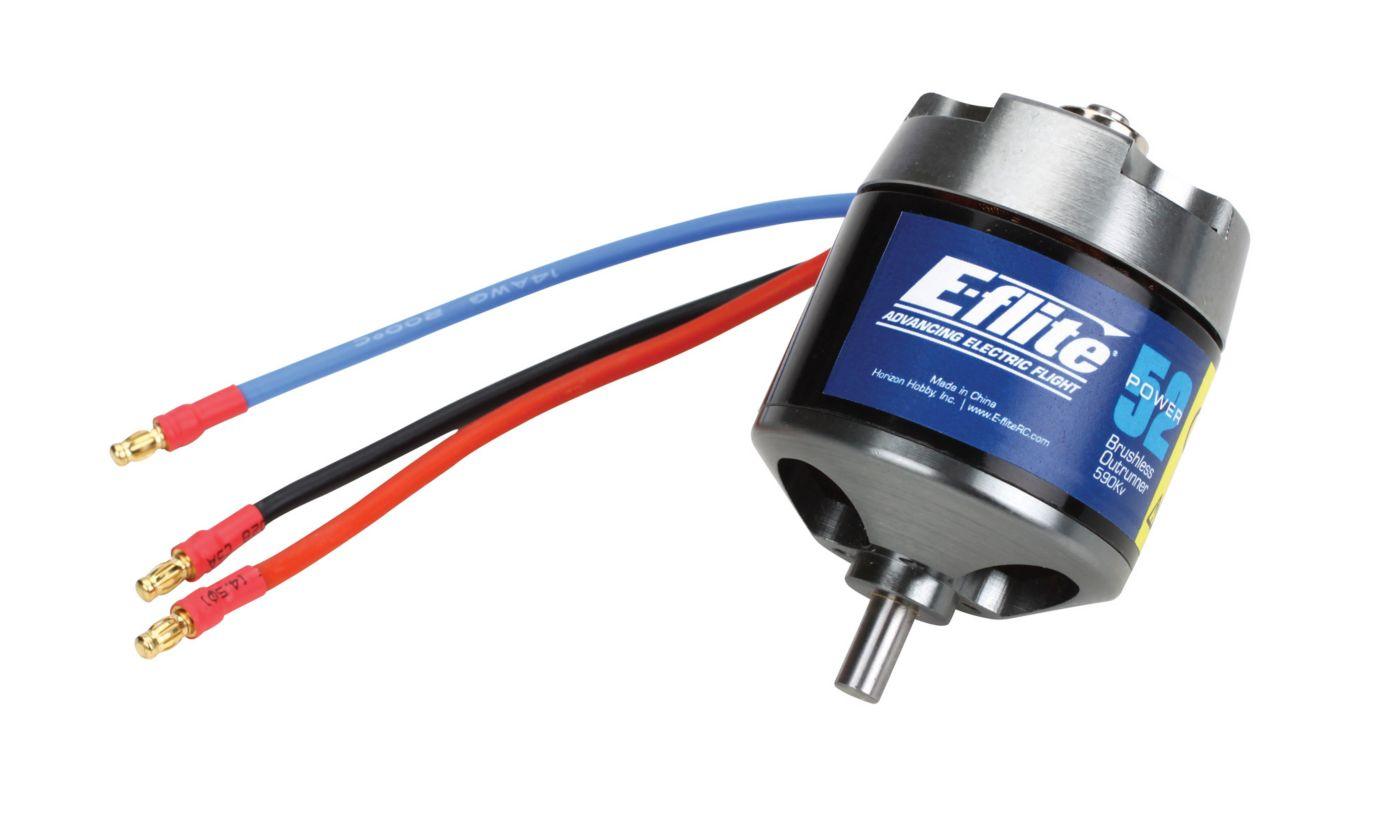

Power 52 Brushless Outrunner Motor, 590KvSuit .40-.50 Size Aircraft
Aircraft/Heli/Drone Brushless Motors Item Code: EFLM4052A
$262.20
Out of stock
Stock held at NZ supplier:
Can be back‑ordered with supplier
Key Features
Needed To Complete
Overview
- Equivalent to a 46- to 55-size glow engine for 5.00- to 7.50 lb (2.20 – 3.40 kg) airplanes.
- Ideal for 40- to 50- size 3D airplanes up to 6.00 lbs (2.70 kg)
- Ideal for models requiring up to 1650 watts of power
- High-torque, direct drive alternative to inrunner brushless motors
- Includes mount, prop adapters and mounting hardware
- Quiet, lightweight operation
- External rotor design 6mm shaft can easily be reversed for alternative motor installations
- High-quality construction with ball bearings and hardened steel shaft
- Slotted 14-pole outrunner design
80-Amp brushless ESC 4S–6S Li-Po or 14- to 16-cell Ni-MH/Ni-Cd Battery 14 x 7 to 12 x 8 Propeller
Designed to deliver clean and quiet power, the Power 52 Brushless Outrunner Motor, 590Kv is designed for 40- to 50-size sport and scale airplanes, 40- to 50-size 3D airplanes, as well as models requiring up to 1650 watts of power.
| Input Voltage: | 14.8–22.2V |
| Motor Type: | Brushless Sensorless Outrunner |
| Adjustable Timing: | No |
| Cells: | 14–20 Ni-MH/Ni-Cd or 4–6S Li-Po |
| Connector Type: | 4mm Bullet |
| Idle Current (Io): | 2.3A @ 18.5V |
| Input Watts: | Up to 1650 |
| Overall Diameter: | 2.00 in (50mm) |
| RPM/Volt (Kv): | 590 |
| Recommended Prop Range: | 4S: 14 x 7 - 15 x 8; 5S: 13 x 8 - 15 x 7; 6S: 11 x 10 - 12 x 8 |
| Recommended Speed Control: | 80-Amp |
| Resistance: | 0.016O |
| Shaft Diameter: | 6mm |
| Shaft Length: | 3.1 in (80mm) |
| Size: | Equivalent to or surpassing the power of a 50- to 55-size 2-stroke glow engine |
