• SKU: 51864

• KV: 515

• Weight: 292g

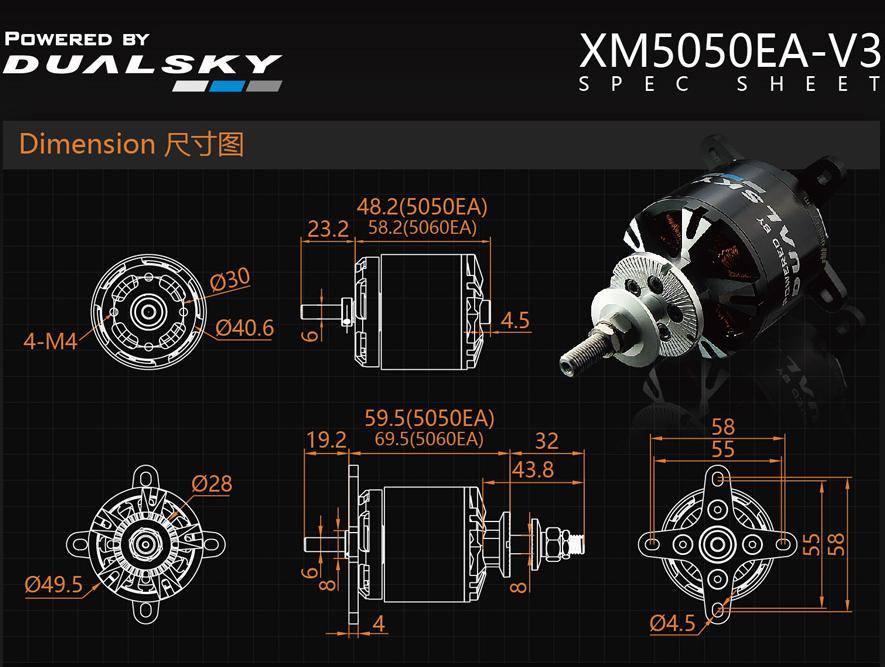

• Dimensions (D × L): 49.5 × 48.2 mm

• Shaft Diameter: 6.0 mm

• Mounting Hole Spec: 4-M3, 30/30 mm

• Input Connectors: DB4

• Stator Dimensions: 4120

• Slots & Poles: 12N14P

• Resistance (Ri): 18.5 mΩ

• No-load Current (Io@10V): 1.5A

• Cells (LiPo): 5–6S

• Efficiency Current: 32.5A

• Burst Current (15S): 65A

• Peak Power (15S): 1560W

• Peak Torque: 1.51 N·m

• Recommended ESC: SUMMIT 100

• Recommended Propeller:

  • 5S: 16×8E, 17×8E

  • 6S: 13×10E, 16×8E*

• Application: 70E, 50–.60 2-stroke. Up to .82 4-stroke

**Good throttle management is required
