Dual Sky
XM5060EA-10 V3 490kv 2280w 90E Brushless Outrunner XMotor
Aircraft/Heli/Drone Brushless Motors Item Code: DSM-51866
$302.45
Out of stock
Stock held at NZ supplier:
2
Model: XM5060EA-10
-
SKU: 51866
-
KV: 490
-
Weight: 392g
-

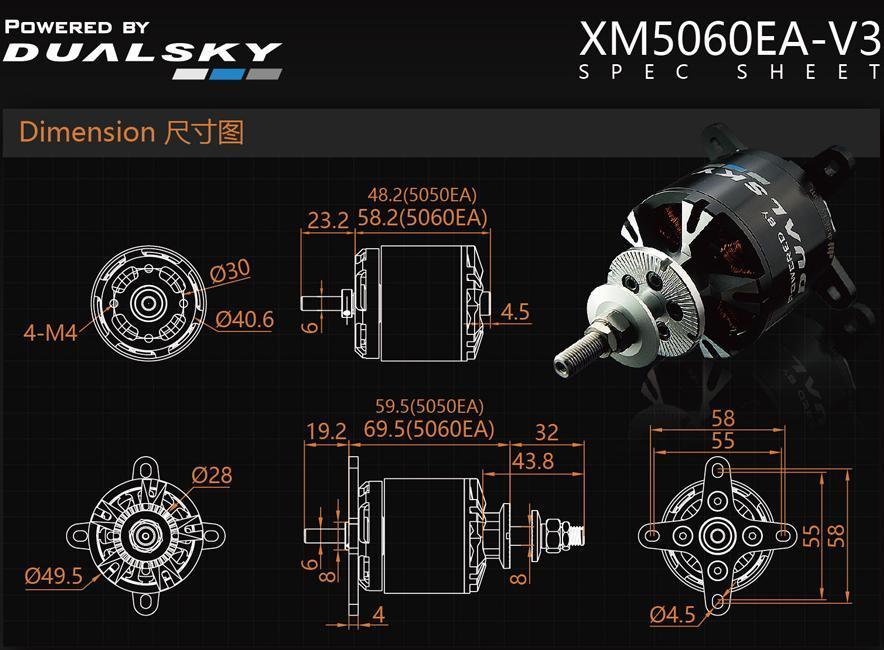

Dimensions (D × L): 49.5 × 58.2 mm
-
Shaft Diameter: 6.0 mm
-
Mounting Hole Spec: 4-M4, 30/30 mm
-
Input Connectors: DB4
-
Stator Dimensions: 4130
-
Slots & Poles: 12N14P
-
No-load Current (Io@10V): 1.8A
-
Resistance (Ri): 14.0 mΩ
-
Cells (LiPo): 5–6S
-
Efficiency Current: 47.5A
-
Burst Current (15S): 95A
-
Peak Power (15S): 2280W
-
Peak Torque: 2.31 N·m
-
Recommended ESC: SUMMIT 100
-
Recommended Propeller:
-
5S: 17×8E, 18×10E
-
6S: 15×8, 16×10E*
-
-
Application: 90E, .75–.90 2-stroke, up to .110 4-stroke
**Good throttle management is required
