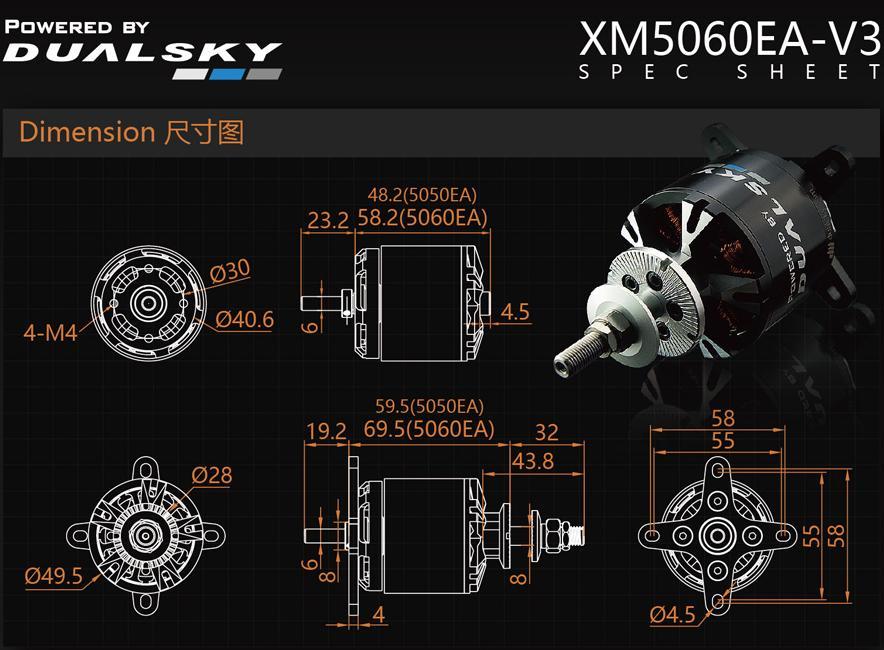

Product Name: Dualsky XM5060EA-12 V3 Brushless Motor SKU: 51867 KV Rating: 400 RPM/V Weight: 393 g Dimensions (D × L): 49.5 × 58.2 mm Shaft Diameter: 6.0 mm Mounting Hole Spec: 4-M4, 30/30 mm Input Connectors: DB4 Stator Dimensions: 4130 Slots & Poles: 12N14P No-load Current (Io @10V): 1.4 A Internal Resistance (Ri): 18.5 mΩ LiPo Cell Count: 6S Max Efficiency Current: 42.5 A Burst Current (15s): 85 A Peak Power (15s): 2040 W Peak Torque: 2.54 mNm Recommended ESC: SUMMIT 100 Recommended Propellers:

• 6S: 16×12E, 17×10E, 17×12E

Applications: 90E aircraft, .75–.90 2-stroke, up to .110 4-stroke engines
