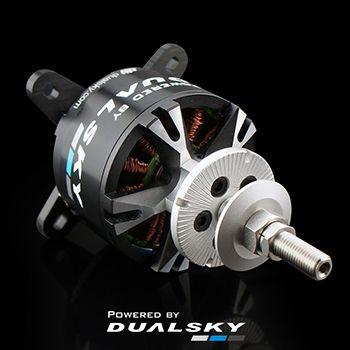

EA V3 FEATURES:

• New appearance,new design all parts,parts strength and heat dissipation channel to further enhance.
• With a wider arc magnet,Japanese 0.20mm silicon steel laminiation,providing strong torque.
• Rotor dual balancing process,NMB bearings,smooth acceleration and deceleration,can bear a higher speed.
• It adopts 220-class enamelled wire and the high-temperature epoxy,with a five-star overload resistance grace.
• Multi-purpose design to support both-end installation namely: Firewall Front installation(default) and firewall back installation.
• For application level optimisation of KV value, avoid complex overlap

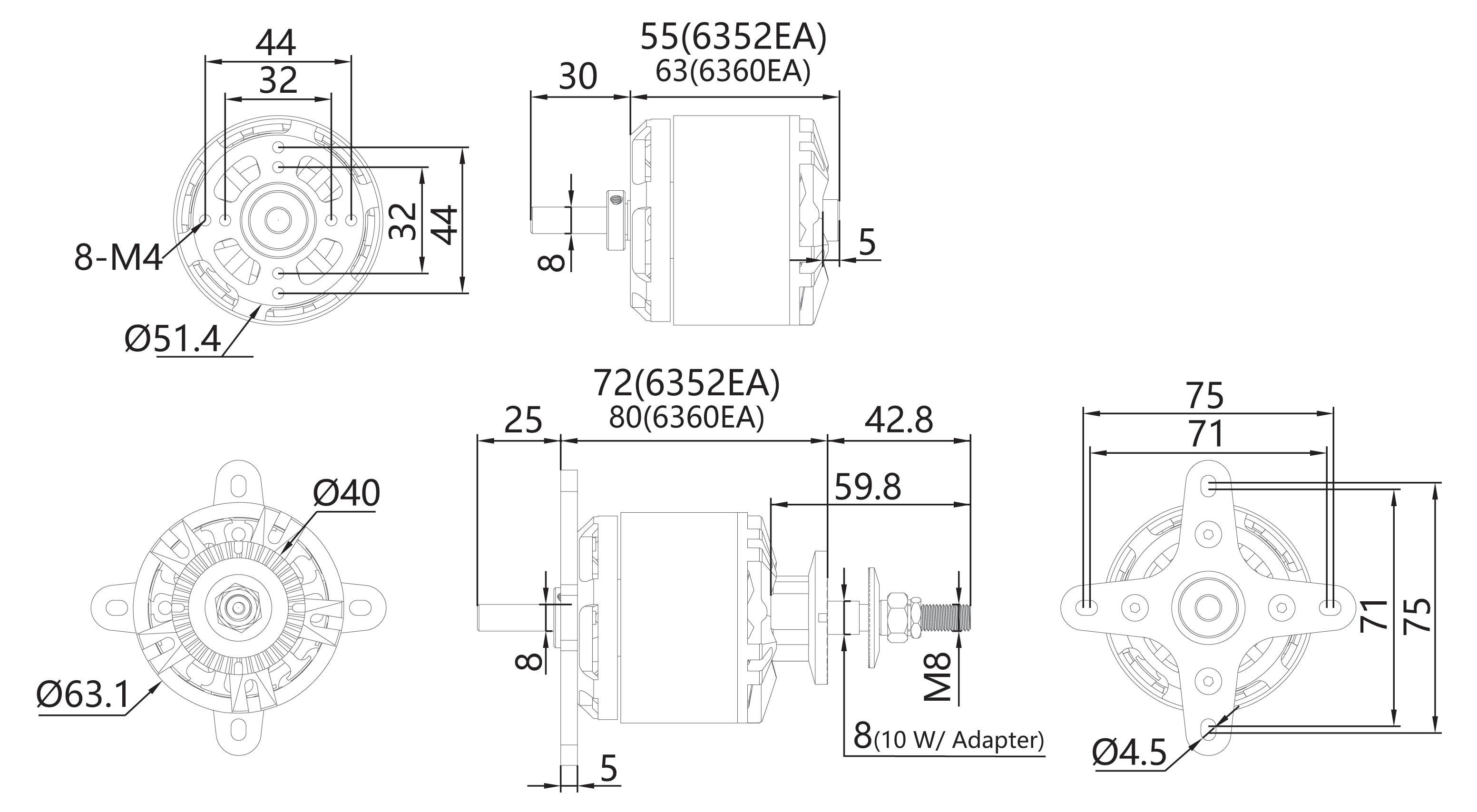

SPECIFICATION Motor Name KV Weight (g) Dimensions (D x L) (mm) Diameter of Shaft (mm) Spec. of Mounting Holes Input Connectors Dimensions of Stator (mm) Slots & Poles Ri(mOhm) Io@10V (A) No. of Cells (LiPo) Efficiency Current (A) Burst Current (15S) (A) Peak Power (15S) (W) Peak Torque (N-M) Recommended ESC Recommended Propeller Application

XM6352EA-10 V3
560
515
63.1 x 55
8.0
4-M3, 32/32 4-M4, 44/44
DB4
5322
12N14P
7.4
3.7
5..61
60
120
2880
2.56
Summit 120
5S: 15 x 6E, 16 x 8E 6S1: 14 x 6E, 15 x 8E2
125E, .95 - .120 2-Stroke up to .140 4-Stroke

1 Suggested working voltage (NOC)

2 Good throttle management needed
