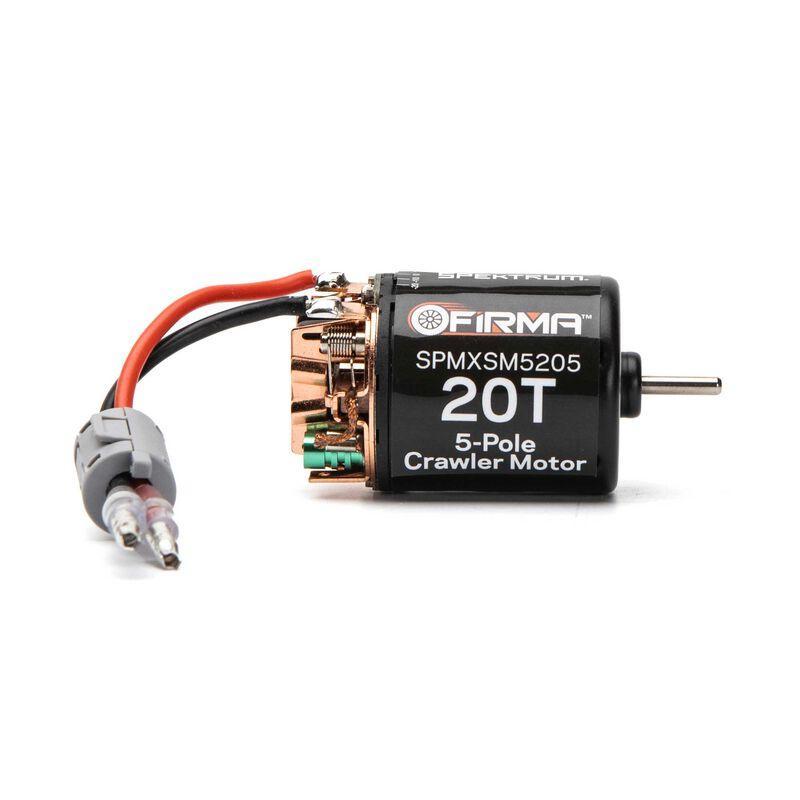

Firma 20T Rebuildable 5 Pole Brushed Crawler Motor
Car Brushed Motors Item Code: SPMXSM5205
$67.25
Out of stock
The Spektrum Firma 5-Pole Rebuildable Brushed Motors offer an impressive low-cost upgrade for brushed esc equipped 1/10th scale Crawlers and Scalers. Featuring fully rebuildable design, impressive low-end torque and control, and excellent efficiency.
- 5-pole design provides half the speed of 3-pole design counterparts
- Adjustable timing for clockwise and counterclockwise motor rotation
- 540 can size – perfect upgrade for most 1/10th scale
- Pre-shaped curved face brushes – No break-in period required!
- Wires and 3.5mm bullets installed – No soldering required!
In The Box
- (1) Spektrum Firma 5–Pole Rebuildable Brushed 20 Turn Motor
- (1) Product Manual
Needed to Complete
- (1) Brushed ESC 40 Amp or Higher
Next-level Slow Speed Control
The Spektrum Firma 5-Pole Rebuildable Brushed Motors offer an impressive low-cost upgrade for brushed esc equipped 1/10th scale Crawlers and Scalers. Featuring a fully rebuildable design, impressive low-end torque and control, and excellent efficiency.
Key Benefits
- 5–Pole design Maximizes smooth throttle control at low speeds and efficiency
- Fully Rebuildable Easy to replace parts for simple maintenance and increased motor lifespan
- Adjustable Timing: 0 to 20 degree timing adjustments for expert level tuning and increased performance
Features
- Available in 16T and 20T configurations
- 5-pole design provides half the speed of 3-pole design counterparts
- Adjustable timing for clockwise and counterclockwise motor rotation
- 540 can size – perfect upgrade for most 1/10th scale
- Pre-shaped curved face brushes – No break-in period required!
- Wires and 3.5mm bullets installed – No soldering required!
- Dual rubber sealed bearings
- Fully rebuildable with an easily accessible commutator and replaceable brushes, springs, and bearings
- 2S LiPo/6Cell NiMH recommended battery
| Connector Type | 3.5mm Bullet |
| Motor Size | 540-Size |
| Product Length | 2.1" (53 mm) |
| Adjustable Timing | Yes |
| Application | 1/10 Scaler/Crawler |
| Product Weight | 169g (6.0 oz) |
| Shaft Diameter | 0.125" (3 mm) |
| Number of Poles | 5 |
| Water-Resistant | No |
| Motor Type | Brushed |
| Turns | 20T |
| Forward | Yes |
| Outer Diameter | 1.4" (36 mm) |
| Reverse | Yes |
| Bushing Or Bearing | Bearing |
