Spektrum
Firma 3530 1700KV 14P Outrunner BL Motor: 3.175MM
Car Brushless Motors Item Code: SPMXSM7000
$205.30
Out of stock
Product Details
This is a replacement motor for SPMXSEMC23. SPMXSM7100 is an optional motor for SPMXSEMC22 and SPMXSEMC23.
Key Features
- 2-4S LiPo Power Compatible
- 12-Pole Rotor Design
- 3.175mm Output Shaft
- Pre-installed 3.5mm Gold-plated Bullet Connectors
In The Box
- (1) Firma 3530-1700Kv 12-Pole Outrunner Brushless Motor: 3.175mm

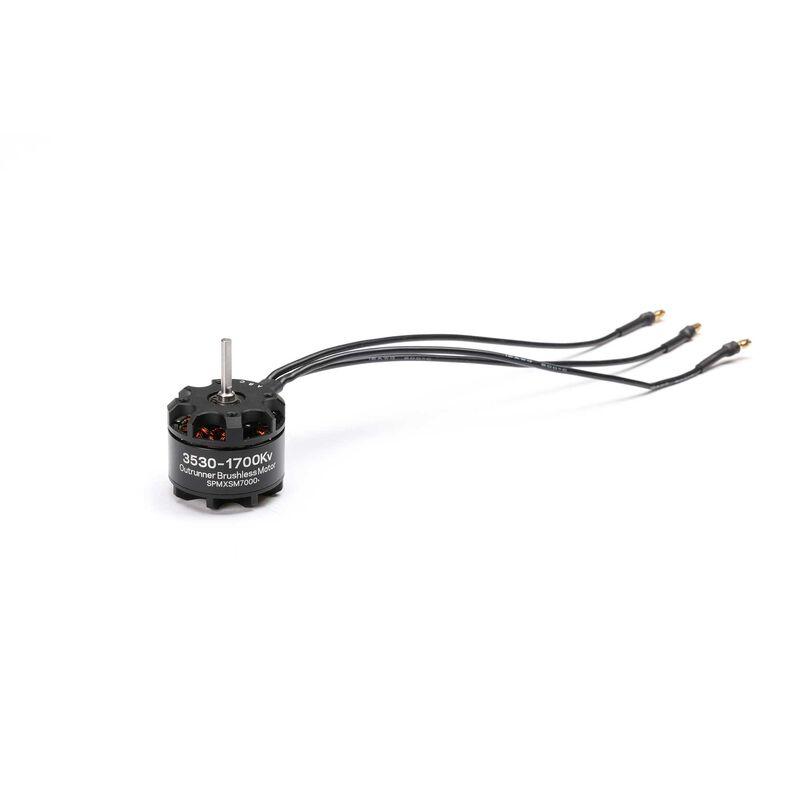

The Spektrum® Firma™ 3530 1700Kv Brushless Motor is a great choice for 1/10 rock crawler models running on 2-4S LiPo power. This motor features a 12-pole rotor design, CNC machined aluminum housing, insulated high purity copper windings, and high-quality alloy steel 3.175mm (1/8 in.) output shaft for durability and smooth rotation. The motor includes preinstalled 3.5mm gold-plated bullet connectors for easy installation.
Product Specifications
| Application | Surface |
| Connector Type | 3.5mm Bullet |
| Connector Wire Length | 8.07" (205 mm) |
| LiPo Compatibility | 2S, 3S, 4S |
| Motor Size | 3530 |
| Motor Type | Brushless |
| Number of Poles | 12 |
| Outer Diameter | 1.37" (35 mm) |
| Product Length | 1.18" (30 mm) |
| Product Weight | 100g |
| RPM/Volt (Kv) | 1700Kv |
| Shaft Diameter | 0.12" (3 mm) |
| Shaft Length | 0.7" (18 mm) |
| Voltage | 7.4v - 14.8v |
