Spektrum

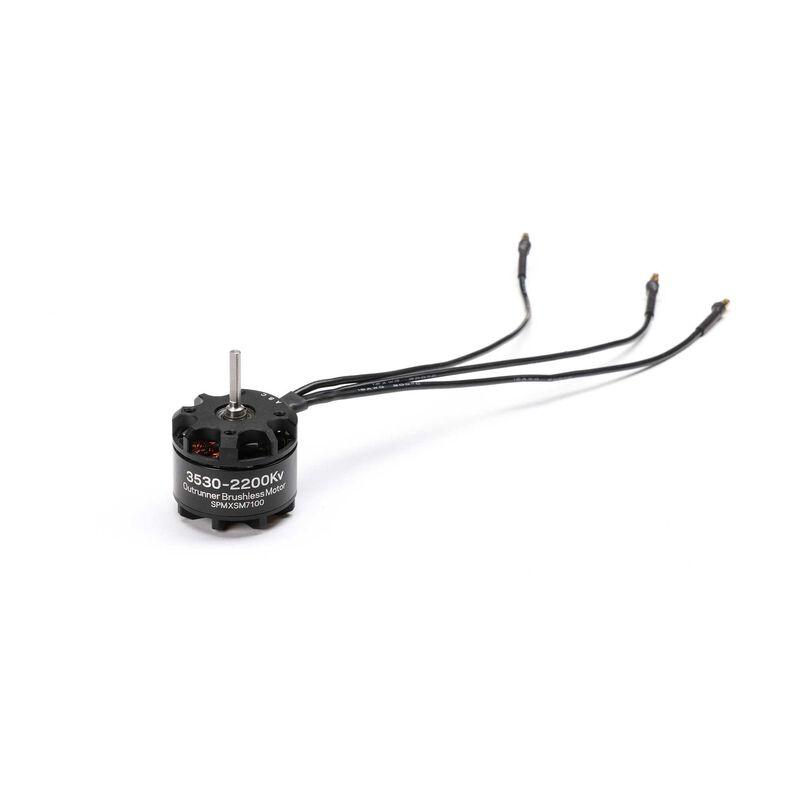

Firma 3530 2200KV 14P Outrunner BL Motors: 3.175MM
Car Brushless Motors Item Code: SPMXSM7100
$205.30
Out of stock
Product Details
Firma sensorless outruner motor developed for 1/10 scale crawlers and scalers.
Key Features
- 2-3S LiPo Power Compatible
- 12-Pole Rotor Design
- 3.175mm Output Shaft
- Pre-installed 3.5mm Gold-plated Bullet Connectors
In The Box
- (1) Firma 3530-2200Kv 12-Pole Outrunner Brushless Motor, 3.175mm
The Spektrum® Firma™ 3530 2200Kv Brushless Motor is a great choice for 1/10 rock crawler models running on 2-3S LiPo power. This motor features a 12-pole rotor design, CNC machined aluminum housing, insulated high purity copper windings, and high-quality alloy steel 3.175mm (1/8 in.) output shaft for durability and smooth rotation. The motor includes preinstalled 3.5mm gold-plated bullet connectors for easy installation.
Product Specifications| Connector Type | 3.5mm Bullet |
| Connector Wire Length | 8.07" (205 mm) |
| LiPo Compatibility | 2S, 3S |
| Motor Type | Brushless |
| Number of Poles | 12 |
| Outer Diameter | 1.37" (35 mm) |
| Product Length | 1.18" (30 mm) |
| Product Weight | 100g |
| RPM/Volt (Kv) | 2200Kv |
| Shaft Diameter | 0.12" (3 mm) |
| Shaft Length | 0.7" (18 mm) |
| Voltage | 7.4v - 11.1v |
