Spektrum

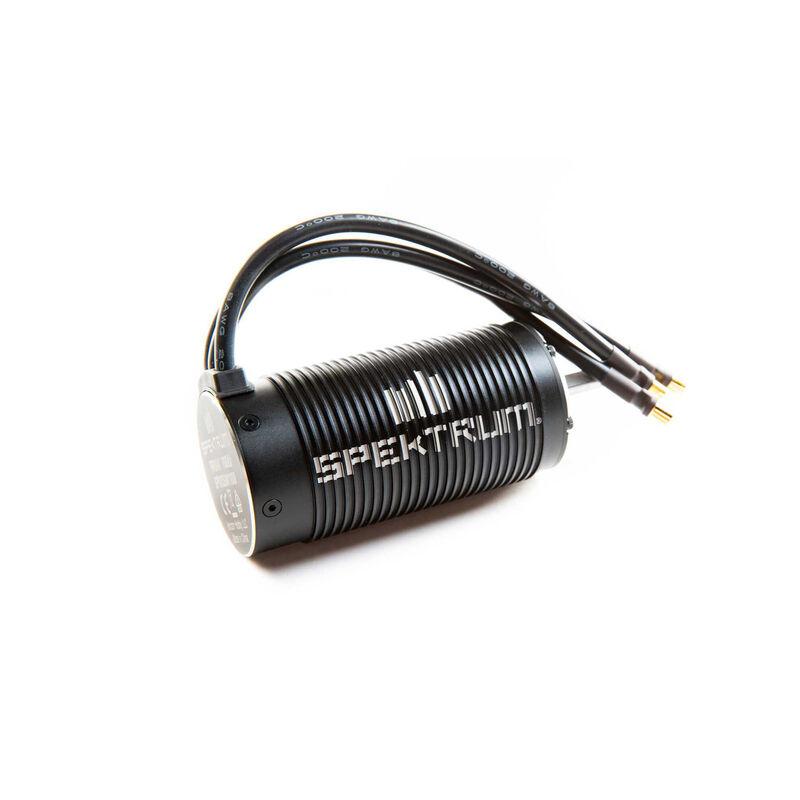

Firma 56112 780Kv 4-Pole Brushless Motor: 8mm
Car Brushless Motors Item Code: SPMXSM1100
$518.75
Out of stock
Key Features
Overview
- Heat sinking designed CNC aluminum housing
- 8S LiPo power capable
- Hgh efficiency design
- High-quality 4-pole sintered rotors
- Includes 6.5mm gold plated bullet connectors
- Precision ball bearings and hardened steel 8mm shaft
Perfect option for 1/5th scale models looking to run a 8S Lipo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing with heat sinking fins, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and high-precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors. Perfectly matched to the Firma 160 Smart ESC.
Needed to Complete
- Electronic Speed Control such as the Firma 160 Smart ESC
What's in the box?
- Spektrum Firma 5613-780Kv Sensorless 1/5 Brushless Motor with 6.5mm Gold Plated Bullet Connectors
| Connector Type | 6.5mm Bullet |
| Efficiency | 90% |
| Product Length | 4.45" (113 mm) |
| Number of Poles | 4 |
| Output | 6365W (6S LiPo) |
| Product Weight | 43oz (1220g) |
| Shaft Diameter | 5/16" (8mm) |
| Bushing Or Bearing | Bearing |
| Wire Gauge | 10 AWG |
| Motor Design | Inrunner |
| Maximum Continuous Current | 200A |
| Motor Type | Brushless |
| Outer Diameter | 2.2 in (56mm) |
| Product Width | 2.2" (56 mm) |
| Input Voltage | 11.1 - 29.6V (3 - 8S LiPo) |
| Recommended Speed Control | Spektrum Firma 160 Smart ESC |
| RPM/Volt (Kv) | 780Kv |
