ParkZone
30-Amp Pro Switch-Mode BEC Brushless ESC (V2)
Aircraft Speed Controllers Item Code: EFLA1030B
$137.65
Out of stock
Stock held at NZ supplier:
1
Product Description
Key Features
Overview
Specs
Amperage:
BEC Voltage:
Brake:
Continuous Maximum Current:
Height:
Input Connector Types:
Input Voltage:
Length:
Momentary Peak Current:
Output Connector Types:
Type:
Weight:
Width:
- Up to 30 amps continuous current with proper air flow and 35 amps burst current (15 seconds)
- 3.5A continuous current, 5V Switch-Mode BEC Circuit
- Stronger BEC for support of most 3-axis stabilization systems
- Drive up to 7 analog or 6 digital standard-size servos with the BEC
- 3- to 4-cell Li-Po, 9- to 12-cell Ni-MH/Ni-Cd input voltage
- Programmable motor braking
- Safe power-arm mode prevents accidental starts
- Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V) or 74% of battery starting voltage
- Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)
- Programmable soft start for helis and airplanes
- Auto motor shut down if signal is lost or there is interference
- Programmable timing - 5 user-selectable ranges for use with a large variety of brushless motors
- Pre-wired connectors—E-flite EC3™ connector on battery input and 3.5mm gold bullet connectors on motor output leads

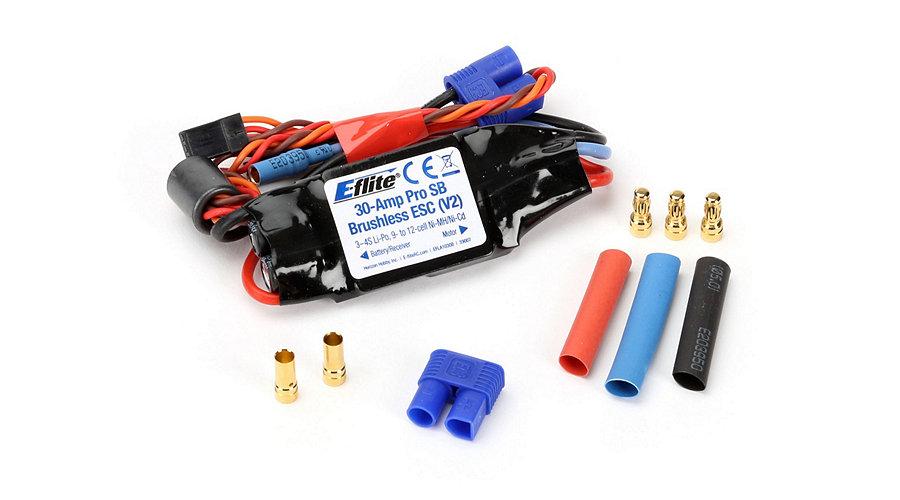

The E-flite® 30-Amp Pro Switch-mode BEC Brushless ESC (V2). This is a high-quality sensorless brushless electronic speed control with an integrated switch-mode BEC that is very lightweight and efficient. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication.
| 20-35 |
| 3.5A continuous |
| Yes |
| 25 - 50A |
| 0.35 in (8.7mm) |
| EC3 |
| 3S–4S Li-Po 9- to 12-cell Ni-MH/Ni-Cd input voltage |
| 2.0 in (51mm) |
| 35A |
| 16AWG with 3.5mm Female Gold Bullet Connectors |
| Brushless |
| 1.1 oz (31g) |
| 1.1 in (28mm) |
