ZTW
Mantis 45A G2 Brushless Aircraft ESC SBEC 45/55A 2-4S 5-7.4v 4A SBEC
Aircraft Speed Controllers Item Code: ZTW-2045211
$83.84
$93.15
10% OFF
SPECIAL
Out of stock

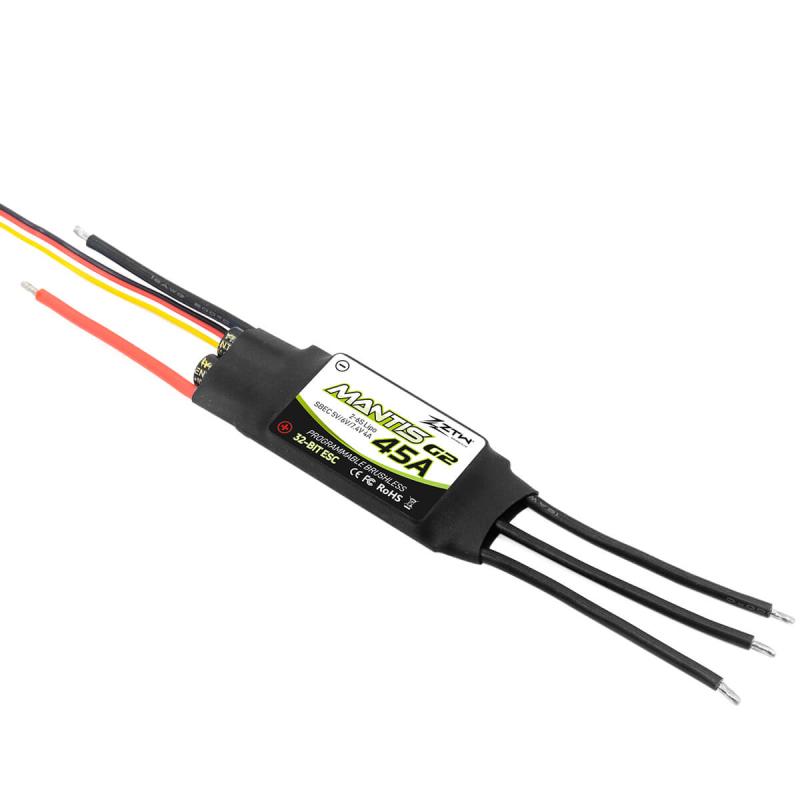

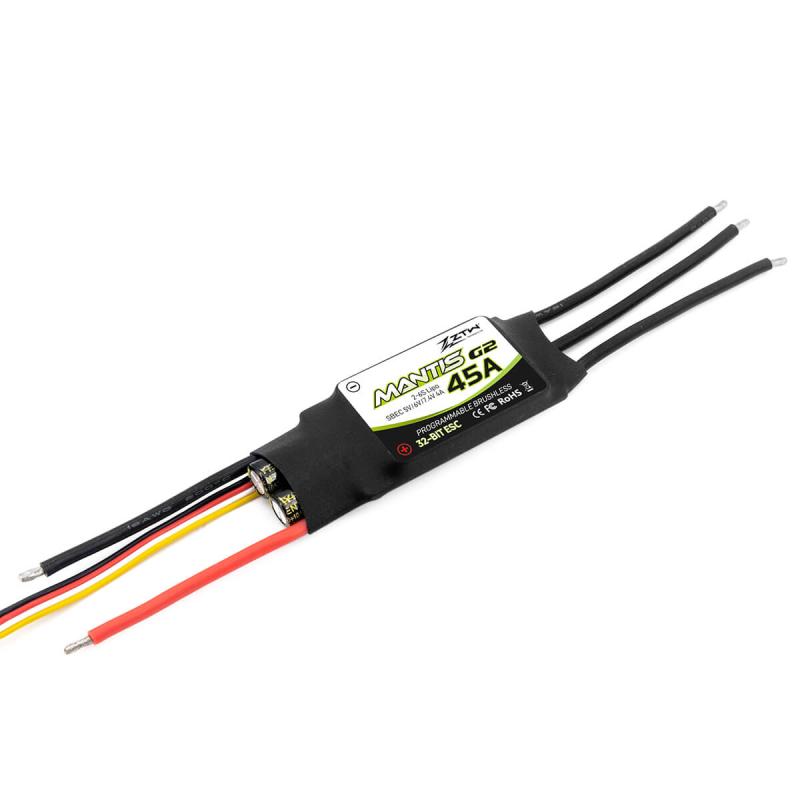

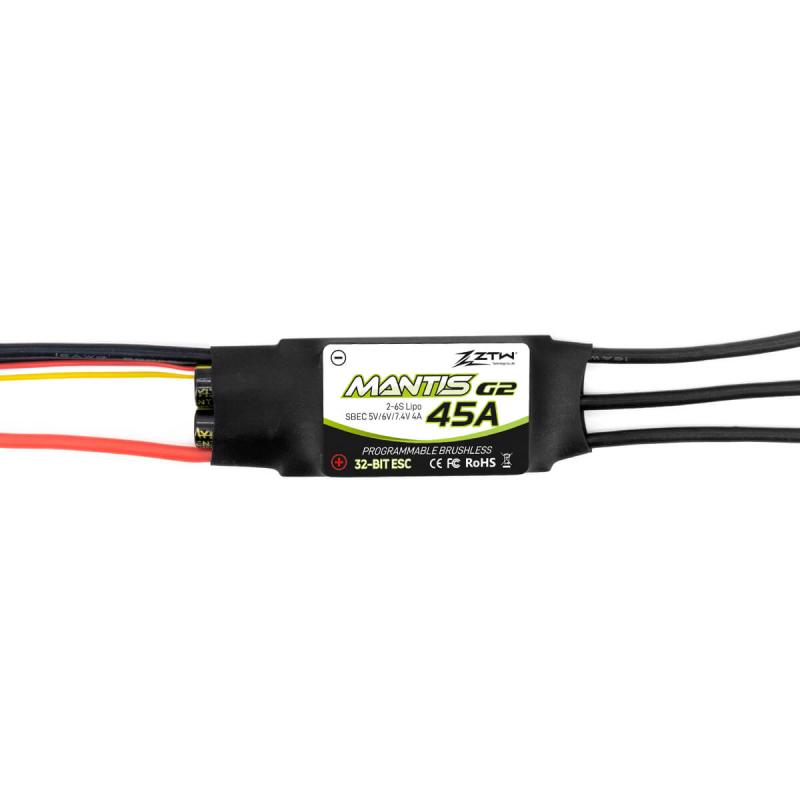

ZTW Mantis G2 45A ESC 2-6S (SBEC 5A)
NEW 32-Bit ZTW Mantis G2 45A ESC 2-6S for RC Airplanes and Helicopters.
With the unique circuit design and improved algorithm, and equipped with the powerful and high performance 32-Bit processor, it greatly improves the computing capability which makes the ESC responds more faster. The startup is getting smoother ang more accurate, and the throttle linearity is optimized, which is more accurate and stable, and the compatibility is better.
Built-in upgraded high power switching BEC adjustable 5v/6V/7.4V, which makes the ESC can drive stronger servos and more external devices, also make the ESC meeting more applications.
Support high RPM motors, and compatible with most motors in the market, the maximum RPM up to 300,000 and supporting switching the motor rotation.
With synchronous rectification, it can significantly reduce the heating of the ESC, which makes the ESC is more energy-saving and driving efficiency. Longer time of endurance, low heating.
Features
- Super smooth and accurate throttle linearity
- Higher driving efficiency and more energy-saving
- Two modes: normal and soft acceleration
- Multiple protections: start-up, over-heat, low-voltage cutoff, over-load, over-current and signal loss.
- Safety thermal over-load protection
- Auto throttle shut down in signal lose situation
- Over-heat protection: When the temperature of ESC exceeds 110 deg C, the ESC will reduce the output power to allow it too cool.
- Lost signal protection: The ESC will automatically cut power to the motor when it detects a lost of throttle signal for 2 seconds, then the motor will emit continuous beeping tone.
- Support high RPM motors and compatible with most motors in the market
- Continuous Current: 45A
- Burst Current: 55A
- Strong BEC Output: 5.0V/6.0V/7.4V 4A
- Battery: 2-6S Lipo
- Size: 73mm x 26mm x 10mm
- Weight: 43g
- Note: this ESC is delivered without plug except the receiver plug.
