ESC/Motor Combos Item Code: SPMXSEMC22

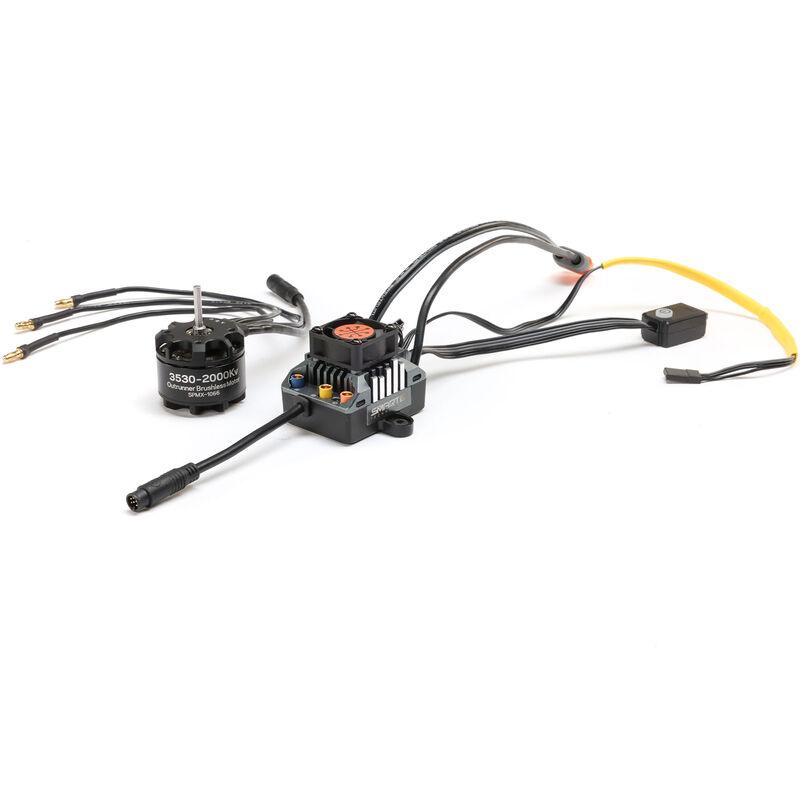

Firma 1/10 Smart Sensored Outrunner Motor/ESC Combo: 2000Kv Smart Sensored outrunner upgrade system for 1/10th scale crawlers and scalers.
- (1) Firma 60A Brushless Sensored Smart ESC,Outrunner (SPMXSE2060S)
- (1) Firma 3530-2000Kv 14-Pole Sensored Outrunner Brushless Motor, 3.175mm (SPMX-1066)
The Spektrum™ Smart 1/10 Sensored Outrunner 2000Kv Motor/ESC Combo is the perfect choice for your crawler or scaler models running on 2-4S LiPo power. This combo features a low-cog, 12-pole, 14-magnet rotor design, CNC machined aluminum housing, insulated high-purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for durability and smooth rotation. This combo is specifically developed for 1/10 crawlers and scalers to provide ultra-smooth low speed control and performance and reliability. The Motor/ESC combo includes preinstalled 3.5mm gold-plated bullet connectors for easy installation. Furthermore, the included SPMX-1066 motor is perfectly matched for the included Firma 80A Smart ESC (SPMXSE2060S).
- Smart All-In-One Telemetry
- Enable/Disable Drag Brake From Compatible Spektrum Transmitters
- Fast, Powerful 32-Bit ARM M4 Processor
- Multiple Programming Options
- Multi-Point Protection
- Waterproof (See Instructions For Details)
- 2-3S LiPo Power Compatible
- 12-pole Outrunner
- 3.175mm Output Shaft
- Pre-installed 3.5mm Gold-plated Bullet Connectors
| Auto Cutoff | Yes |
| BEC Voltage | 6V/7.4V at 6A |
| Brakes | Yes |
| Connector Type | IC3, 3.5mm Bullet |
| ESC Type | Sensored Brushless Ourunner |
| Forward | Yes |
| Input Voltage | 2-4S LiPo |
| LiPo Compatibility | 2S,4S |
| Low-Voltage Cutoff Programmable | Yes |
| Maximum Burst Current | 360A |
| Maximum Continuous Current | Yes |
| Motor Limit | 2000Kv (4S) |
| Number of Poles | 12 |
| Overload Protection | Yes |
| Reverse | Yes |
| RPM/Volt (Kv) | 2000Kv |
| Shaft Diameter | 3.175" (81 mm) |
| Shaft Length | 18.5" (470 mm) |
| Technology | Smart |
