Spektrum
Firma 30A BL Smart ESC + 4500Kv Motor Combo
ESC/Motor Combos Item Code: SPMXSEMC14
$144.10
Out of stock
Product Details
Key Features
- Designed for the Losi Mini-T, Mini-B, Mini Drag, and Mini JRX2
In The Box

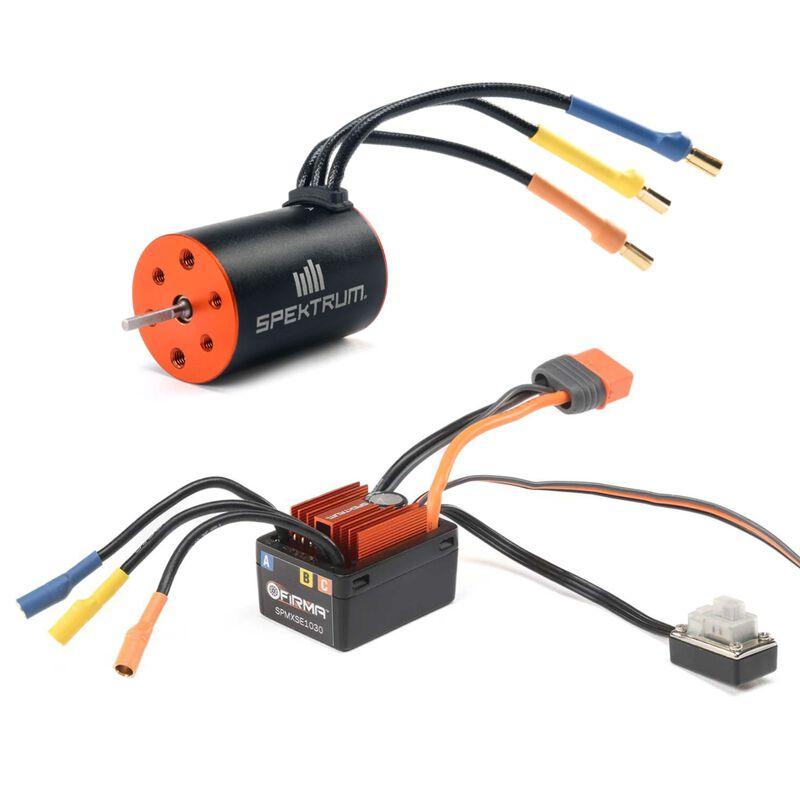

- (1) Spektrum Firma 30A Brushless Smart ESC
- (1) Spektrum Firma 2436 4500Kv 4-Pole Brushless Motor
- (1) Product Manual
Spektrum Firma 30A Brushless Smart ESC / 4500Kv Motor Combo Overview
Feature-packed Spektrum™ Firma™ Smart ESCs deliver power and intelligence all-in-one, with no additional modules or links required. This waterproof, 30A brushless marine ESC drives your mini through almost any condition imaginable, with explosive acceleration and ultra-smooth performance — while feeding real-time telemetry straight to your Spektrum™ transmitter! The 4500Kv Motor offers impressive torque, speed, and excellent efficiency.
Spektrum Firma 30A Brushless Smart ESC / 4500Kv Motor Combo Features
- Smart all-in-one telemetry
- Waterproof (see instructions for details)
- Multiple programming options
- Multi-point protection
The Smart data wire on the innovative IC5™ connector replaces sensors, sending telemetry information to the transmitter directly from the Firma™ Smart ESC.
Product Specifications
| Bushing Or Bearing | Bearing |
| Forward | Yes |
| Reverse | Yes |
| Motor Type | Brushless |
| Speed Control | Included |
| Amperage | 30A |
| BEC Type | Linear |
| Brakes | Yes |
| Programmable | Yes |
| Application | 1/16 to 1/18th scale mini sized vehicles |
| BEC Continous Current | 3A |
| Low-Voltage Cutoff Programmable | Yes |
| Number of Poles | 4 |
| Output Connector | 3.5mm Bullet |
| Overload Protection | Yes |
| Shaft Diameter | 0.08" (2 mm) |
| BEC | Yes |
| BEC Voltage | 6V / 7.4V |
| Input Voltage | 2S - 3S LiPo | 5C - 9C NiMH |
| Motor Output Lead | 3.5mm Bullet |
| RPM/Volt (Kv) | 4500Kv |
| Sensored | No |
| Shaft Length | 0.47" (12 mm) |
| Maximum Burst Current | 100A |
| Maximum Continuous Current | 30A |
| Technology | Smart |
| Connector Type | IC3 |
| ESC Type | Brushless |
