Spektrum

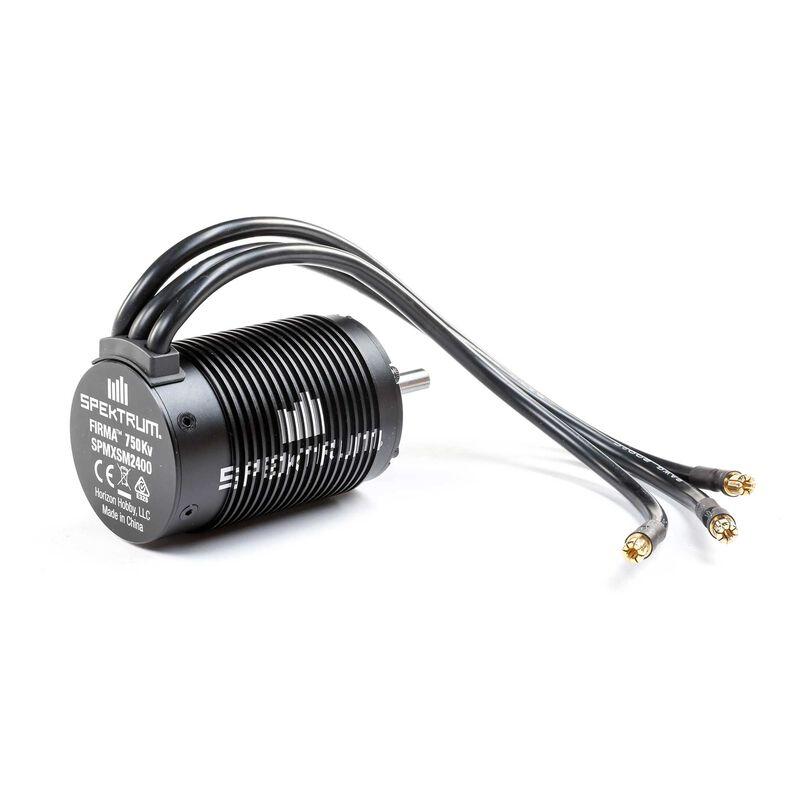

Firma 5687 750kv 4-Pole Brushless Motor: 8mm shaft
Car Brushless Motors Item Code: SPMXSM4200
$357.10
Out of stock
- 4S LiPo Capable
- Low Cog 4-Pole 8-Magnet Rotor Design
- Alloy steel 8mm Output Shaft
In The Box
- Firma 5687 - 750Kv 4-Pole Brushless Motor
Needed to Complete
- 150A ESC
Overview
The Firma 750Kv brushless motor is a perfect option for 1/6 scale buggies, truggies or monster trucks with 3S-6S Lipo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 150 Smart ESC.
Features
- Perfect upgrade for 1/6 scale buggies, truggies or monster trucks running on 3-6S LiPo batteries.
- High efficiency design
- 4S LiPo power capable
- High-quality 4-pole sintered rotor
- 6.5mm gold plated bullet connectors
- High-quality construction with precision ball bearings and hardened steel 8mm shaft
| Outer Diameter | 2.2" (56 mm) |
| Input Voltage | 12 25.2V |
| RPM/Volt (Kv) | 750Kv |
| Maximum Continuous Current | 80A |
| Motor Type | Brushless - Sensorless |
| Motor Design | Inrunner |
| Connector Type | 6.5mm Bullet |
| Efficiency | 87% |
| Motor Size | 5687 |
| Product Length | 3.43" (87 mm) |
| Application | 1/6 scale buggies, truggies or monster trucks with 3S-6S Lipo powered setup |
| Number of Poles | 4 |
| Output | 3950W |
| Product Weight | 2.08lbs (947g) |
| Shaft Diameter | 0.314" (8 mm) |
