Car Brushless Speed Controllers Item Code: TRI-1079
MX10 1/10 speed control is the higher-performance speed control needed for competition 1/10 off-road and on road vehicles. Designed for high performance competition with durability and adjustability ever racer needs.

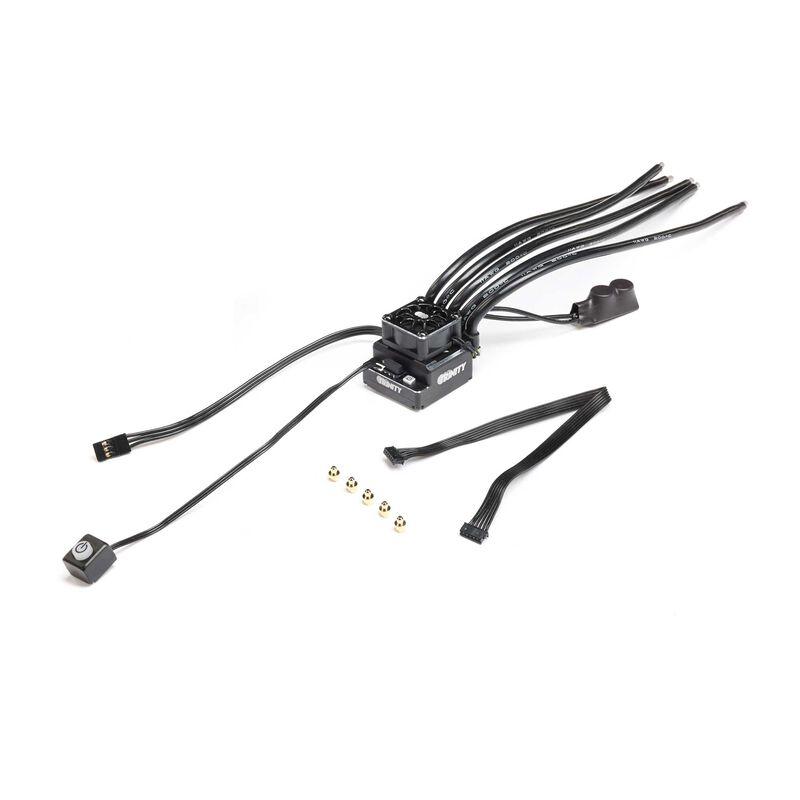

- (1) MX10 Gen3 1/10th ESC
- (1) 200mm Sensor Wire
- Quick Start Guide

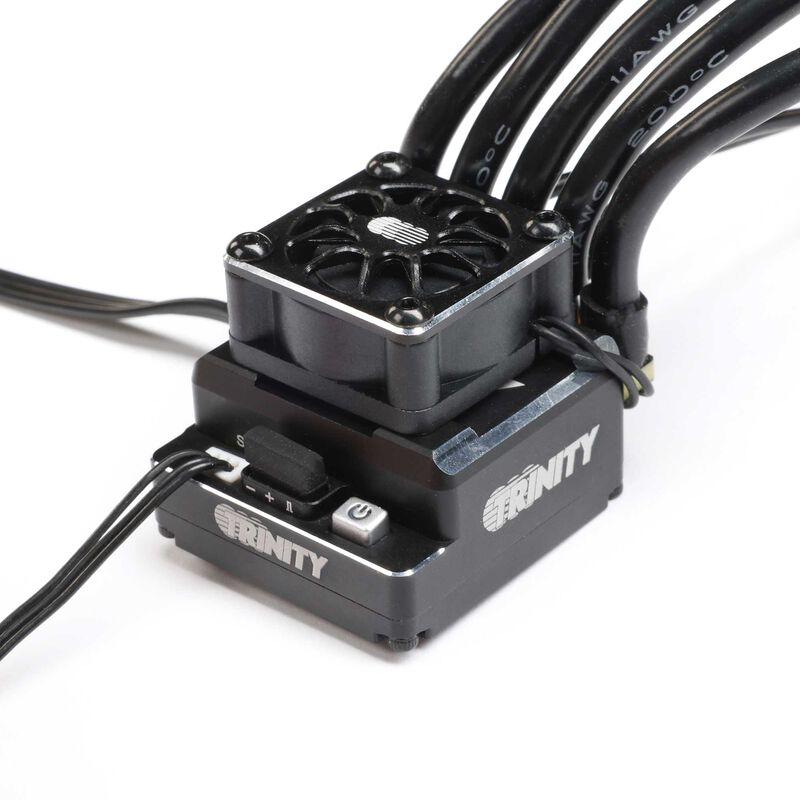

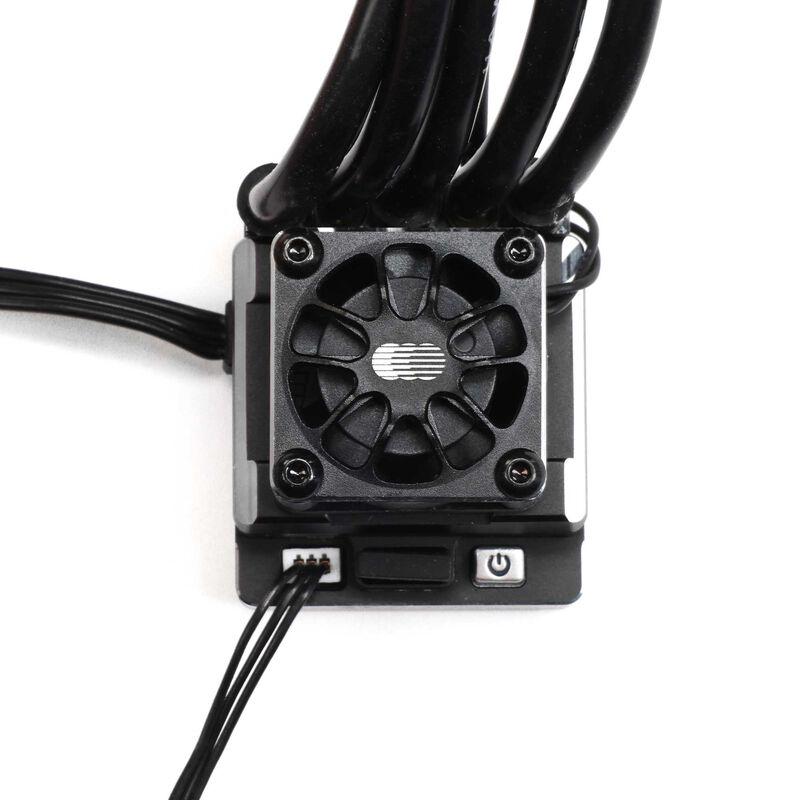

The Trinity MX10 Gen 3 160A Sensored ESC has been designed for the most competitive 1/10 and 1/12 scale stock and mod racers. The MX10 offers a 160-amp constant power rate and an incredible 1200-amp burst rate. All this power comes in a sleek black machined aluminum case designed for maximum heat dissipation. This third generation ESC also features a 32-bit microprocessor for more powerful processing capability and more precise power output. Each ESC comes with our updated high strand count, high flex 13-gauge wire, fan, and capacitor bank. A shortened receiver connector wire comes standard to make sure your wiring looks clean. The MX10 Gen 3 ESC can be programmed by the Trinity LCD ESC Program Box or the Trinity OTA Programming Module (sold separately) to take your driving to the next level.
Product Specifications| Application | 1/10 Vehicle |
| Auto Cutoff | Yes |
| BEC Type | Adjustable |
| BEC Voltage | 6.0v / 7.4v |
| Input Voltage | 2-3S LiPo / 5-10S NiMH |
| LiPo Compatibility | 2S |
| Low-Voltage Cutoff Programmable | Yes |
| Maximum Burst Current | 1200A |
| Maximum Continuous Current | 160A |
| Motor Limit | 2-Pole 3.5T |
| Motor Type | Brushless |
| Output | 5V - 7.4V Adjustable |
| Overload Protection | Yes |
| Product Height | 1.19" (30 mm) |
| Product Length | 1.38" (35 mm) |
| Product Weight | 93g (3.28 oz) |
| Product Width | 1.32" (34 mm) |
| Programmable | Yes |
| Reverse | Yes |
| Sensored | Yes |
| Wire Gauge | 13 AWG |
