Car Brushless Speed Controllers Item Code: TRI-1081
MX10 1/10 Spec speed control is the higher performance speed control needed for spec level 1/10 on road and off-road racing. Designed specifically for spec class high performance competition with durability and adjustability ever racer needs.

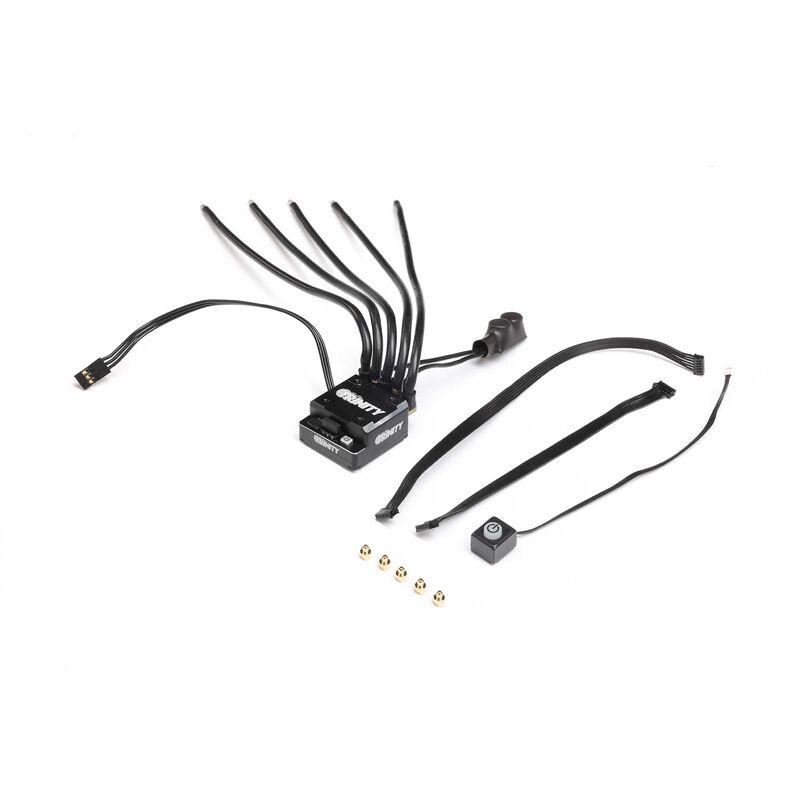

- (1) MX10 Spec/Blinky ESC
- (1) 200mm Sensor Wire
- (1) Quick Start Guide
The Trinity MX10 Spec/Blinky ESC has been designed for the most competitive 1/10 and 1/12 scale stock and mod racers. The MX10 offers a 100-amp constant power rate and a 500-amp burst rate. All this power comes in a sleek black machined aluminum case designed for maximum heat dissipation. This ESC also features a 32-bit microprocessor for more powerful processing capability and more precise power output. Each ESC comes with our updated high strand count, high flex 13-gauge wire, fan, and capacitor bank. A shortened receiver connector wire comes standard to make sure your wiring looks clean. The MX10 Spec/Blinky ESC can be programmed by the Trinity LCD ESC Program Box or the Trinity OTA Programming Module to take your driving to the next level.
Product Specifications| Adjustable Timing | Yes |
| Application | 1/10 Vehicle |
| Auto Cutoff | Yes |
| BEC | Yes |
| BEC Type | Adjustable |
| BEC Voltage | 5.0v / 7.4v |
| Input Voltage | 2S LiPo |
| LiPo Compatibility | 2S |
| Low-Voltage Cutoff Programmable | Yes |
| Maximum Burst Current | 500A |
| Maximum Continuous Current | 100A |
| Motor Limit | 2-Pole 10.5T |
| Motor Type | Brushless |
| Output | 5V - 7.4V Adjustable |
| Overload Protection | Yes |
| Product Height | 1.19" (30 mm) |
| Product Length | 1.38" (35 mm) |
| Product Weight | 93g (3.28 oz) |
| Product Width | 1.32" (34 mm) |
| Programmable | Yes |
| Reverse | Yes |
| Sensored | Yes |
| Wire Gauge | 13 AWG |
