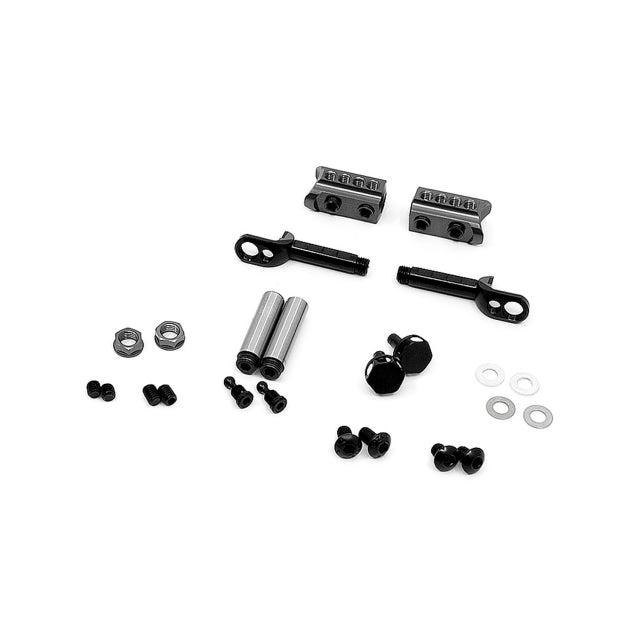

The optional A12-AFS set is our next-generation front suspension system for the A12X / A12WC platforms.
Its main advantage: you can adjust caster, camber, ride height and droop with the front wheels installed - without changing any shims, caster posts or any disassembly.

Important: The A12-AFS set cannot be used with the standard C1205X or C1201X components.

• Key Feature:
• - Full front-end tuning without removing the wheels.
• - Faster, cleaner adjustments compared to traditional 1/12 pan-car suspensions.
• - Compatible with standard 1/12 setup stations or an angle gauge for camber.
• - Camber range: ±1.75°
• - Selectable caster angles: 3°, 4°, 5°, 6°
• - Stepless ride-height adjustment
• - Stepless downstop adjustment

• Compatibility & Required Parts:
• Servo plate and suspension plates are not included.
• To run the AFS system, choose the correct AFS suspension plates + a matching AFS servo plate for your needs/conditions.
• Suspension / Servo plate pairing:

• - C1205AFS-1.5 → use with C1201AFS-1.5
  - C1205AFS-5.0 → use with C1201AFS-5.0
