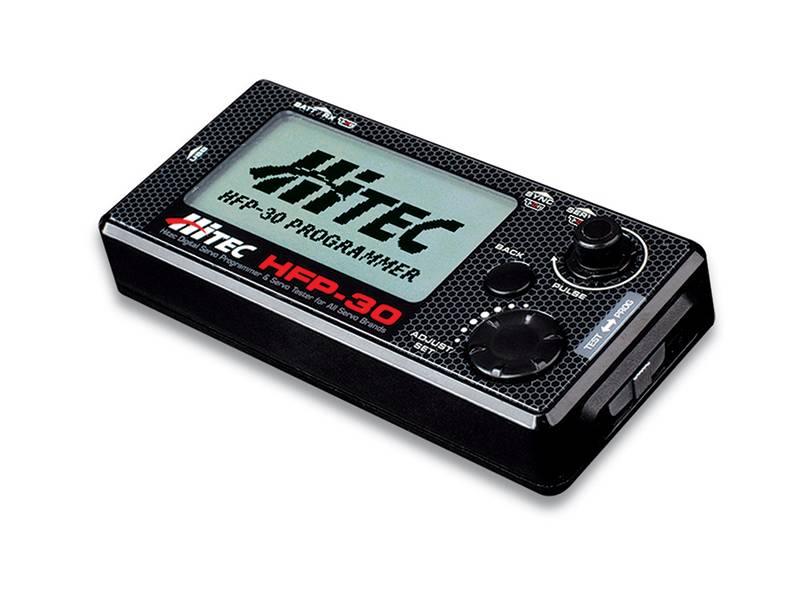

FIELD PROGRAMMER FOR HITEC DIGITAL SERVOS (BLDC/D SERIES/ 5000/ 7000 SERIES) / UNIVERSAL SERVO TESTER by Hitec
Servo Parts Item Code: HFP-30
$141.29
$176.65
20% OFF
SPECIAL
Out of stock
Stock held at NZ supplier:
1
| GENRAL FEATURES |
Performs manual or automatic test on any brand servo, measures receiver pulse width and frame rate, programmes all programmable HITEC servos.
Manual mode
- Displays output pulse
- Displays test time
- Super fine setting selectable (adjustments per 1us)
Auto-Extreme Mode
- Cycles servo through 3 selectable points (1100us, 1500us, 1900us default)
- Speed adjustable from 0.1sec to 5sec
- Displays cycle count
- Displays test time
Auto-Sweep Mode
- Cycles the servo in a sweeping motion between 2 selectable points (1100us and 1900us default)
- Transit time adjustable from 1.6sec/cycle to 80sec/cycle
- Displays pulse output (us)
- Displays cycle count
- Displays test time
Auto-Step Mode
- Cycles the servo in a stepping motion between 2 selectable end points (1100us and 1900us default)
- Step pulse width is adjustable from 1us to 100us
- Displays pulse output (us)
- Displays cycle count
- Displays test time
Auto-DB Mode
- "Jitters"the servo by a selectable pulse width
- Jitter pulse width ajustable between 0.25us-100us (0.25us increments)
- Displays pulse output (us)
- Displays cycle count
- Displays test time
- Great tool for testing the resolution of servos
Adjustable frame rates (3-30ms)
Large easy-to-read LCD screen
Input voltage 4.8-8.4V range
| PROGRAMMING FEATURES INCLUDE |
- Reset to factory default
- End and center points
- Direction of Rotation
- Dead Band Width
- Failsafe Point (BLDC/D Series only)
- Speed (reduction only)
- Overload Protection (HS-50XX & HS-7XXX Series)
- Resolution Mode Setting HS-7XXX Series Only)
| INCLUDES |
Digital Servo Programmer and Universal Servo Tester with Instructions
| SPECIFICATIONS |
Length: 5.2" (132mm) Width: 2.5" (63mm) Height: 0.94" (24mm)
