Spektrum

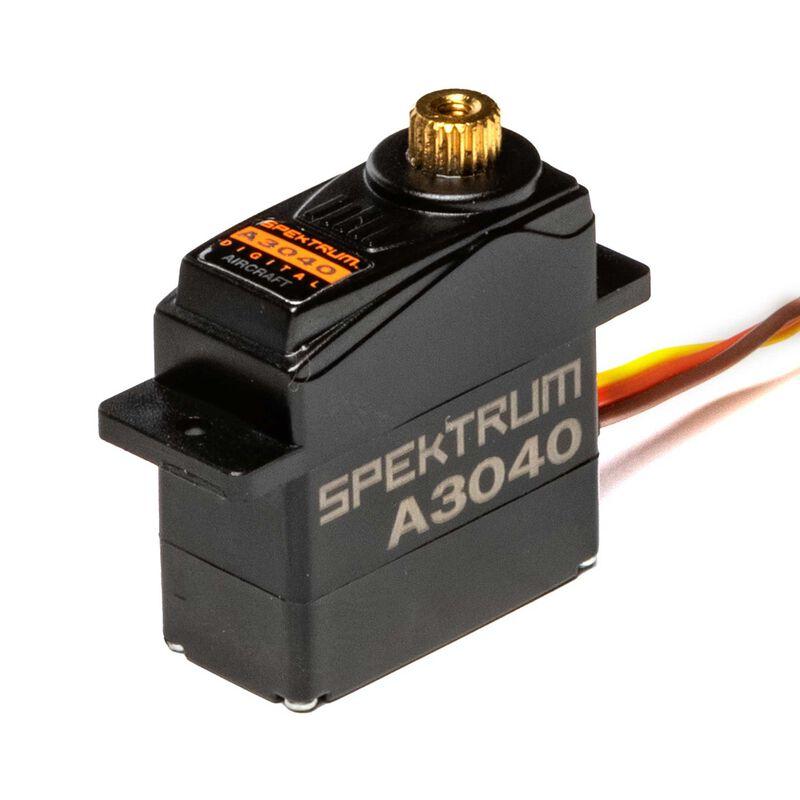

A3040 Mid Torque High Speed SubMicro Plastic Servo
Mini & Micro Servos Item Code: SPMSA3040
$102.90
Out of stock
Key Features
Overview
- High speed
- Low cost
- Low deadband
- Digital precision
- Metal gears
This 0.10-second transit time (at 6 volts), 28 oz-in of torque, metal gear servo is an ideal combination of weight, speed and holding power for slow and park flyer aircraft. Ball bearing support around the output shank helps keep the servo precise for many flights to come. Choose the A3040 servo for electric aircraft and sailplanes where the robust nature of metal gears is desired. The low deadband technology means that you’ll enjoy reliable accuracy and precision.
| Product Height | 1.00" (25.5mm) |
| Servo Type | Digital |
| Maximum Servo Torque | 23 oz-in (1.66 kg-cm) @ 4.8V; 28 oz-in (2 kg-cm) @ 6.0V |
| Bearing | Single |
| Gear Type | Metal |
| Maximum Servo Speed | 0.100-0.149 sec |
| Bushing Or Bearing | Bearing |
| Product Length | 0.93" (23.6mm) |
| Product Width | 0.45" (11.5mm) |
| Programmable | No |
| Servo Size Category | Sub-Micro |
| Max Servo Torque | 20-39 oz-in |
| Product Weight | 0.44 oz (12.6 g) |
| Motor Type | Cored |
| Servo Operating Voltage | 4.8 - 6.0V |
