Spektrum

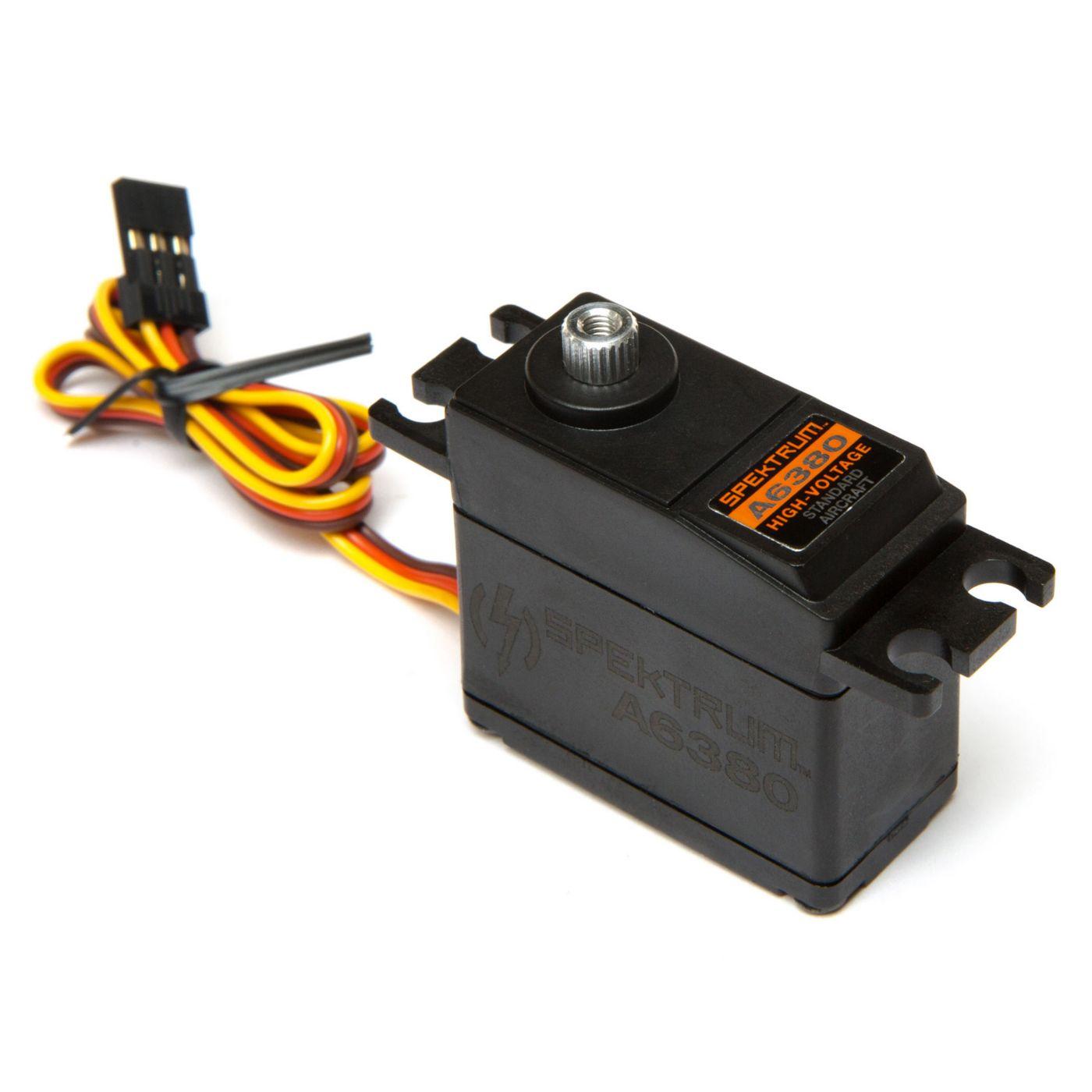

A6380 High Torque High Speed HV Standard Servo
Standard Servos Item Code: SPMSA6380
$97.75
Out of stock
Overview
The Spektrum™ A6380 high-voltage, digital servo is the perfect budget-solution for your sport plane. With its durable design combined with dual bearing output support, metal-gear durability, smooth coreless motor operation, an impressive 160 oz-in torque rating at 8.4 volts, the A6380 servo boast specifications that easily beat other standard-size competitors in its class.
| Application: | Aircraft |
| Bearing: | Dual |
| Bushing Or Bearing: | Bearing |
| Connector Type: | Z-Connector |
| Connector Wire Gauge: | 22 AWG |
| Connector Wire Length: | 6 in and 12 in |
| Gear Type: | Metal |
| Height: | 1.47 in (37mm) |
| Length: | 1.52 in (39mm) |
| Motor Type: | Coreless |
| Servo Operating Voltage: | 6.0-8.4V (High Voltage) |
| Servo Type: | Digital |
| Speed: | 0.17 sec/60° @ 6.0V, 0.13 sec/60° @ 8.4V |
| Torque: | 102 oz-in (7.3 kg-cm) @ 6.0V, 160 oz-in (11.5 kg-cm) @ 8.4V |
| Type: | Digital |
| Weight: | 1.5 oz (42.5 g) |
| Width: | 0.74 in (19mm) |
