Spektrum

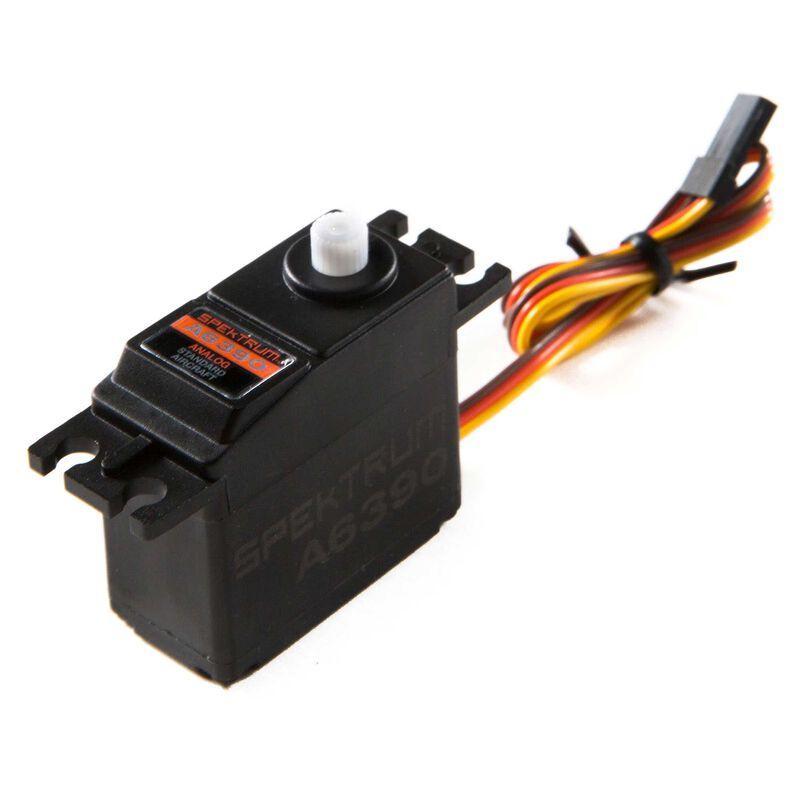

A6390 Mid-Torque Mid-Speed Standard Servo
Standard Servos Item Code: SPMSA6390
$66.90
Out of stock
Overview
The Spektrum A6390 standard size analog sport servo is the perfect budget solution that offers a lightweight plastic gear train, a budget class leading torque rating of 66 oz/in and quick transit speed of 0.14/60. Single ball bearing output shaft and a robust composite plastic case offers durability you can depend on in your 60 size or smaller trainer and sport models. Includes all the mounting hardware and 3 Heavy Duty plastic arms needed for your project.
| Programmable | No |
| Servo Size Category | Standard |
| Connector Wire Length | 12" (304mm) |
| Product Width | 0.74" (18.8mm) |
| Bearing | Single |
| Bushing Or Bearing | Bearing |
| Gear Type | Composite |
| Maximum Servo Speed | 0.100-0.149 sec |
| Wire Gauge | 22 AWG |
| Product Height | 1.36" (34.6mm) |
| Servo Type | Analog |
| Servo Operating Voltage | 4.8 - 6.0V |
| Rotation Range | 120 deg |
| Connector Type | Universal |
| Product Length | 1.52" (38.6mm) |
| Maximum Servo Torque | 48.6 oz-in (3.5 kg-cm) @ 4.8V, 66.7 oz-in (4.8 kg-cm) @ 6.0V |
| Application | Trainer airplane |
| Max Servo Torque | 40-99 oz-in |
| Product Weight | 1.3oz (37g) |
