Spektrum

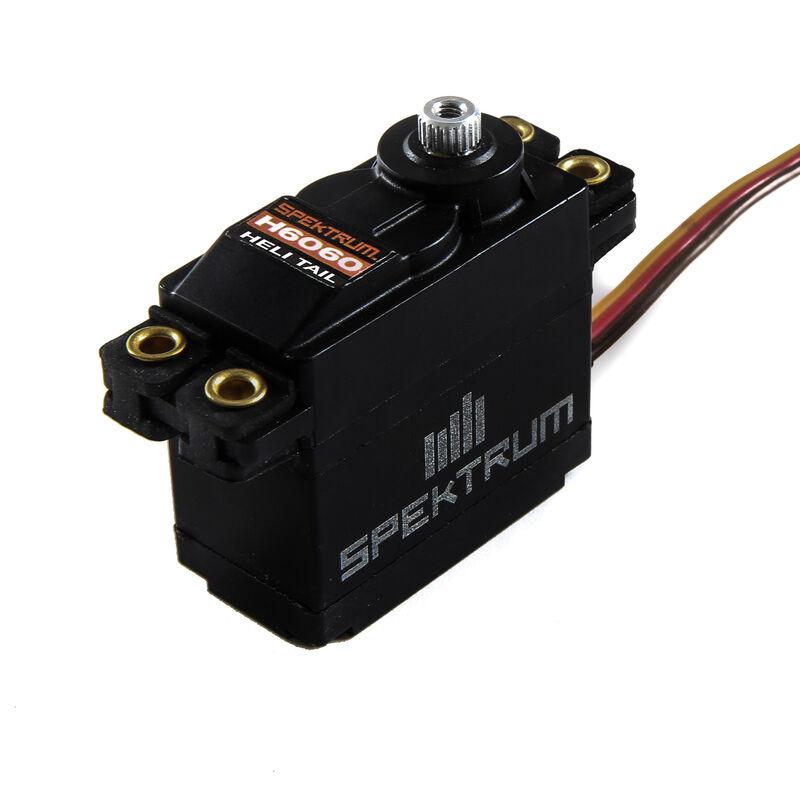

H6060 Mid-Torque Ultra-Speed Heli Tail Servo
Standard Servos Item Code: SPMSH6060
$212.80
Out of stock
Key Features
Overview
- Standard size servo for 500 size Helicopter models and smaller
- 160oz Torque and .056 sec speed at 6.0v
- 4.8v-6.0v input voltage
- Long 10 inch (255mm) connector wire to reduce the need for extensions
- 23 Tooth spline
- Bearing supported output spline
The H6060 is a budget friendly digital tail rotor servo that is purpose built for helicopter models up to 500 size. Featuring a powerful coreless motor that delivers a potent 86oz of torque and a blazing fast .056 sec (at 6.0V) and durable fully metal gear train. Built into a standard size case, this servo is a perfect fit for the Blade Fusion 480 and many other high performance heli models.
| Maximum Servo Speed | 0.050-0.099 sec |
| Maximum Servo Torque | 86 oz-in (6.2 kg-cm) @ 6.0V |
| Wire Gauge | 22 AWG |
| Bushing Or Bearing | Bearing |
| Gear Type | Metal |
| Bearing | Dual |
| Application | Heli Tail |
| Max Servo Torque | 40-99 oz-in |
| Product Weight | 2.2 oz (62g) |
| Product Height | 1.57 in (39.9 mm) |
| Servo Type | Digital |
| Servo Operating Voltage | 4.8 - 6.0V |
| Connector Type | Universal |
| Product Length | 1.57 in (39.9 mm) |
| Rotation Range | 120 deg |
| Connector Wire Length | 10 in (255mm) |
| Product Width | 0.78 in (19.8 mm) |
| Programmable | No |
| Servo Size Category | Standard |
