Hitec

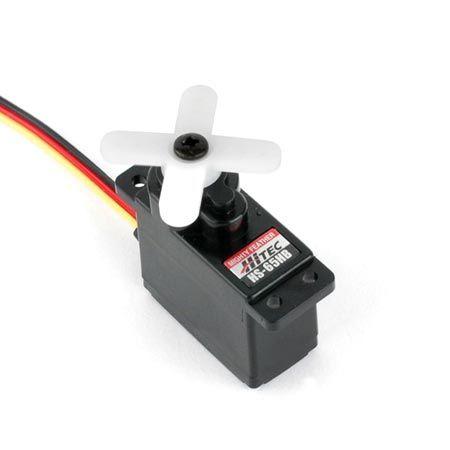

HS-65HB Servo Micro Universal, 4.8V 1.8kg/0.14 sec, 6.0V 2.2kg/0.11 sec, 23.6x11.6x24mm, 11.2g by Hitec
Mini & Micro Servos Item Code: HS-65HB
$63.75
Out of stock
Stock held at NZ supplier:
5 or more
Product Description
Considered one of the most powerful servos in the micro class, the HS-65 is offered with a choice of “shock resistant” Metal or “zero wear” Karbonite gears. The 65 series features a top-ball bearing for long life and positive centering, 31 ounces/inches of power at 6 volts and is an excellent choice for higher performance micro helicopters, electric park flyers, and 1/18 scale cars.
Features- Premium Feather Servo
- Strong Karbonite Gears
- Ball Bearing-Supported Output Shaft
- High Torque and High Speed
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.16 ~ 0.13 |
| Maximum Torque Range oz. / in. | 22 ~ 26 |
| Maximum Torque Range kg. / cm. | 1.6 ~ 1.9 |
| Current Draw at Idle | 7.7 mA |
| No Load Operating Current Draw | 220 mA |
| Stall Current Draw | 1,200 mA |
| Dead Band Width | 5 µs |
| Physical Specifications | |
| Dimensions (Inches) | 0.92 x 0.45 x 0.94 |
| Dimensions (Metric) | 23.6 x 11.6 x 24.0 |
| Weight (Ounces) | 0.39 |
| Weight (Gram) | 11.2 |
| Circuit Type | HT7003 Analog SMT |
| Motor Type | 3 Pole Metal Brush Neodymium |
| Gear Material | Karbonite |
| Bearing Type | Top Ball Bearing |
| Output Shaft (type / Ømm) | Feather 15 / 8 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 28 / 20 |
