Hitec
HS-82MG Servo 3.4kg 0.10/sec @ 6v, Metal Geared Mini. 29.8x12x29.6mm, 19g by Hitec (Replaces HS-81)
Mini & Micro Servos Item Code: HS-82MG
$69.55
Out of stock
Stock held at NZ supplier:
5 or more
Product Description
We took one of our top selling servos and made it even better. Based on the ultra popular HS-81MG the HS-82MG gets a new stronger motor and updated electronics for more precise centering. The HS-82MG is perfect for smaller aircraft and helicopters where a durable geartrain is required.
Features- Top Selling Metal Gear Micro Servo
- Strong Three-Pole Ferrite Motor
- Rugged Metal Gears
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.12 ~ 0.10 |
| Maximum Torque Range oz. / in. | 39 ~ 47 |
| Maximum Torque Range kg. / cm. | 2.8 ~ 3.4 |
| Current Draw at Idle | 10 mA |
| No Load Operating Current Draw | 280 mA |
| Stall Current Draw | 1,800 mA |
| Dead Band Width | 5 µs |
| Physical Specifications | |

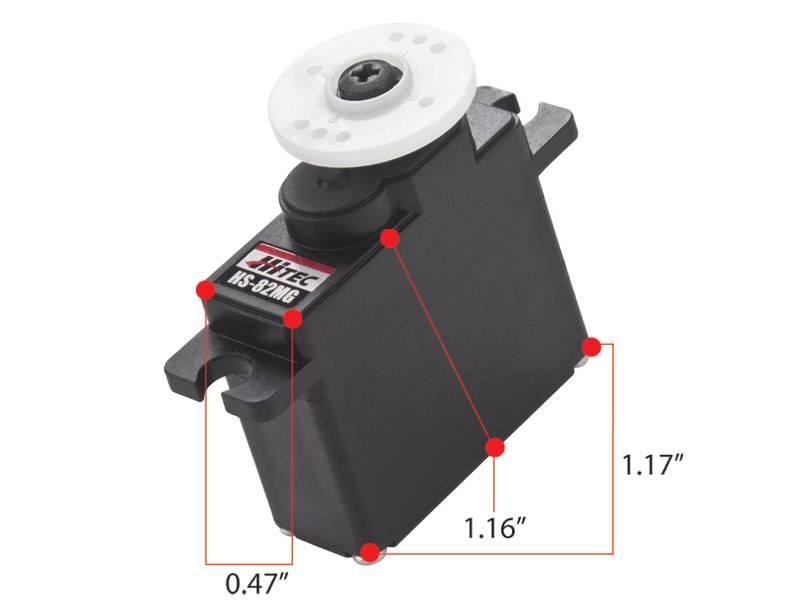

| Dimensions (Inches) | 1.17 x 0.47 x 1.16 |
| Dimensions (Metric) | 29.8 x 12.0 x 29.6 |
| Weight (Ounces) | 0.66 |
| Weight (Gram) | 19.0 |
| Circuit Type | HT7003 Analog SMT |
| Motor Type | 3 Pole Metal Brush Ferrite |
| Gear Material | Metal |
| Bearing Type | None |
| Output Shaft (type / Ømm) | Standard 24 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 28 / 20 |
