Hitec

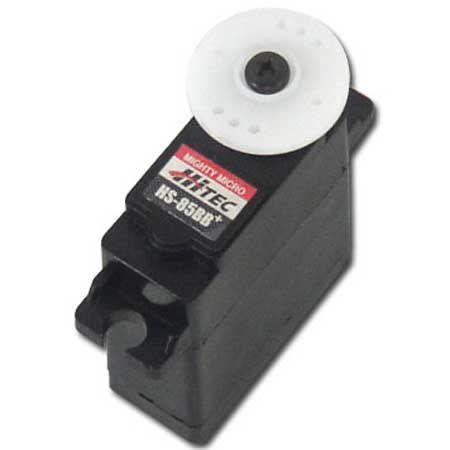

HS-85 Servo Mighty Micro 4.8V 3.0kg/cm 0.16 sec, 6.0V 3.5kg/cm 0.14 sec 29x13x30mm 19.2g, by Hitec
Mini & Micro Servos Item Code: HS-85BB+
$55.20
Out of stock
Stock held at NZ supplier:
5 or more
Product Description
The HS-85BB features a high power motor for greater speed and torque. The HS-85BB is the choice of modelers looking for a high performance servo without breaking the bank. The ball bearing supported output shaft and sturdy gear trains are preferred for smaller glow and electric airplanes, heli’s and sail planes.
Features- High Torque and Precision Centering
- Strong Resin Gear Train
- Ball Bearing-Supported Output Shaft
- Perfect for Applications where a Standard Servo is too Heavy or Large but Standard Torque is Required

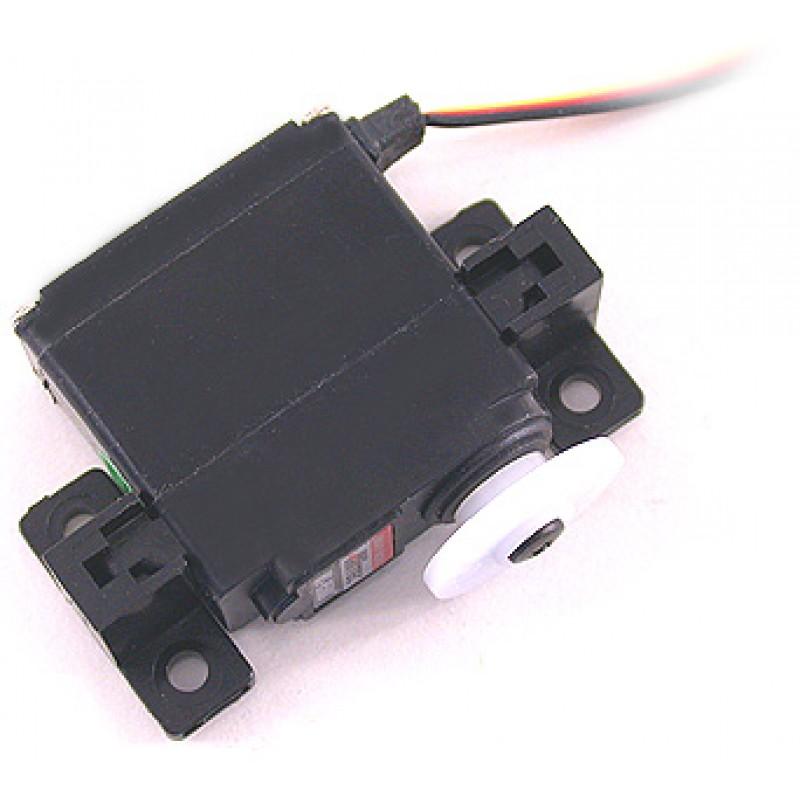

- Includes vertical mounts/brackets
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.16 ~ 0.14 |
| Maximum Torque Range oz. / in. | 42 ~ 49 |
| Maximum Torque Range kg. / cm. | 3.0 ~ 3.5 |
| Current Draw at Idle | 8 mA |
| No Load Operating Current Draw | 280 mA |
| Stall Current Draw | 1,200 mA |
| Dead Band Width | 8 µs |
| Physical Specifications | |
| Dimensions (Inches) | 1.14 x 0.51 x 1.18 |
| Dimensions (Metric) | 29.0 x 13.0 x 30.0 |
| Weight (Ounces) | 0.67 |
| Weight (Gram) | 19.2 |
| Circuit Type | HT7003 Analog SMT |
| Motor Type | 3 Pole Metal Brush Ferrite |
| Gear Material | Nylon |
| Bearing Type | Top Ball Bearing |
| Output Shaft (type / Ømm) | Standard 24 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 28 / 20 |
