Hitec

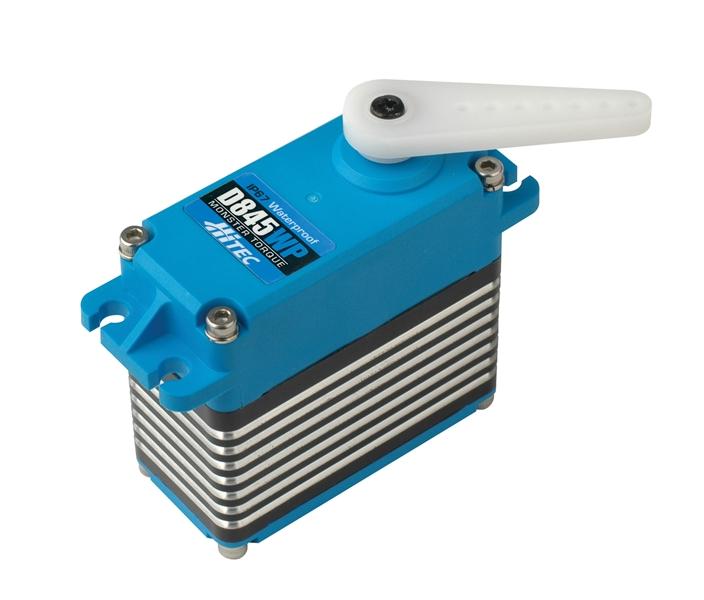

HS-D845WP Servo MEGA Torgue 1/5 Scale Digital Programmable, Water Proof. Wide Voltage 4.8V, 6.0V, 7.4V, Torque 32.5, 40.5, 50.0 kg/cm, Speed

Large Scale Servos Item Code: HS-D845WP

$294.15
Out of stock
Stock held at NZ supplier: 1
Product Description

The steel D-845WP is part of our D-Series servo line. All Hitec D-Series servos have been designed using our brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring a 15 tooth HD output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.

D845WP Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V ~ 7.4V
Speed (Second @ 60°) 0.26 ~ 0.21 ~ 0.17
Maximum Torque Range oz. / in. 454 ~ 566 ~ 698
Maximum Torque Range kg. / cm. 32.5 ~ 40.5 ~ 50.0
Current Draw at Idle 30 mA
No Load Operating Current Draw 1,600 mA
Stall Current Draw 10,000 mA
Dead Band Width 2 µs
Physical Specifications
Dimensions (Inches) 2.59 x 1.26 x 2.44
Dimensions (Metric) 66.0 x 32.0 x 62.0
Weight (Ounces) 8.0
Weight (Gram) 227.0
Circuit Type 32bit Programable Digital
Motor Type 5 Poles Cored Metal Brush
Gear Material Steel
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Mega 15
Case Material Plastic / Aluminum
Dust / Water Resistance IP 67
Connector Gauge (AWG) / Strand Count 20 / 80
