Savox

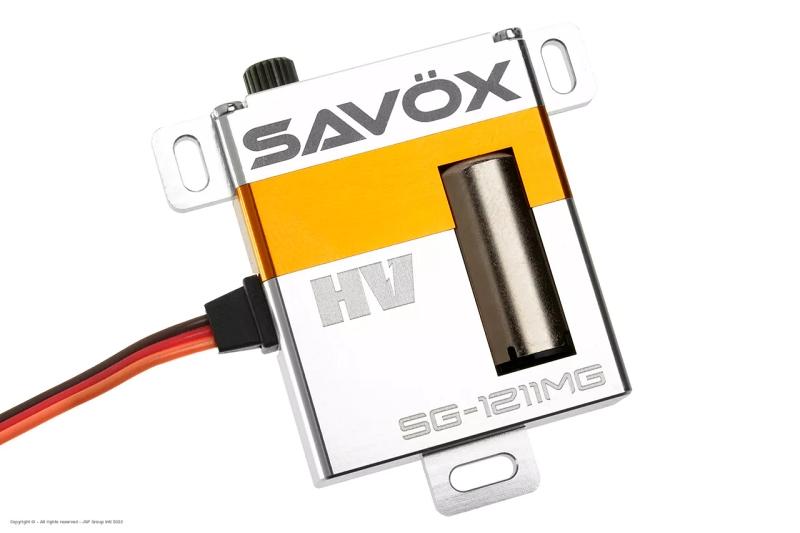

Savox HV Metal Gear High Torque Digital Wing Servo 11kg 0.15sec @ 7.4v 30x10x36mm 30g
Mini & Micro Servos Item Code: SG-1211MG
$137.55
Out of stock
Stock held at NZ supplier:
4
Servo - SG-1211MG - Digital - High Voltage - Coreless Motor - Metal Gear
Features: • Metal Gear train for extended life and durability. • Special design for glider applications. • All aluminum case for secure mounting. • Capable of 2S Operation

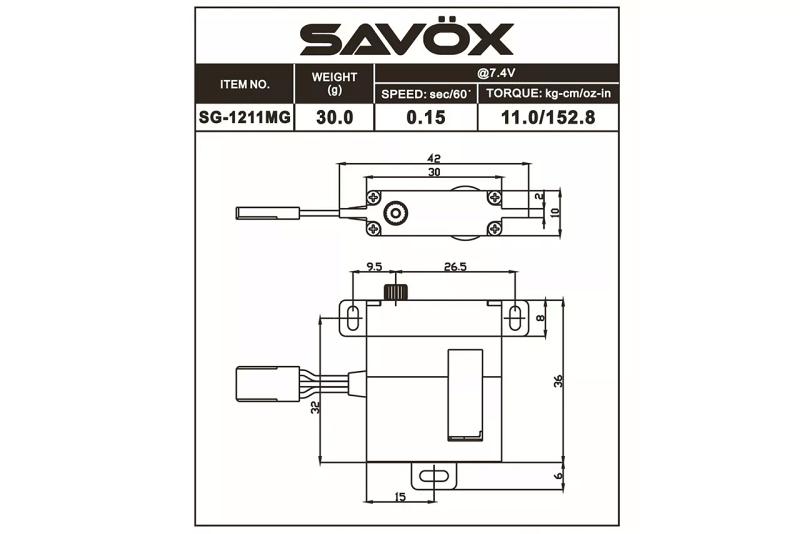

Specifications: • Torque @6v - 8.0kg • Torque @7.4v - 11.03kg • Speed @6v - 0.18 sec/60 deg • Speed @7.4v - 0.15 sec/60 deg • Dimensions L x W x H (mm): 30.0 x 10.0 x 36.0 • Weight: 29g
General Info
Item Nr
SG-1211MG
Barcode
4710006993591,00
Brand
Savöx
Servo - Specs
Speed 60°/Sec @ 6.0V
0,18
Speed 60°/Sec @ 7.4V
0,15
Torque kg/cm @ 6.0V
8,00
Torque kg/cm @ 7.4V
11,03
Quiescent Current (mA)
5,00
Rated Current (mA)
180,00
Blocking Current (mA)
3700,00
Servo - Dimensions
Servo Type
Standard Servo
Spline Type
21T Spline
Length (mm)
30,00
Width (mm)
10,00
Height (mm)
36,00
Weight (g)
29,00
Servo - Technology
Technology
Digital HV
Operating Voltage (V)
6.0V - 8.4V
Servo Motor
Coreless Motor
Servo Protection
Water - Dust Resistant
Servo Positioning
VR Potentiometer - Direct Drive
Servo Gears
Metal Gears
Servo Case
Aluminium Case
Connector
JR Universal + Colored Lead
