Savox
Savox HV Metal Gear High Torque Digital Wing Servo 8kg 0.12sec @ 7.4v 30x10x36mm 30g
Mini & Micro Servos Item Code: SG-1212MG
$121.09
$134.55
10% OFF
SPECIAL
Out of stock
Stock held at NZ supplier:
5 or more

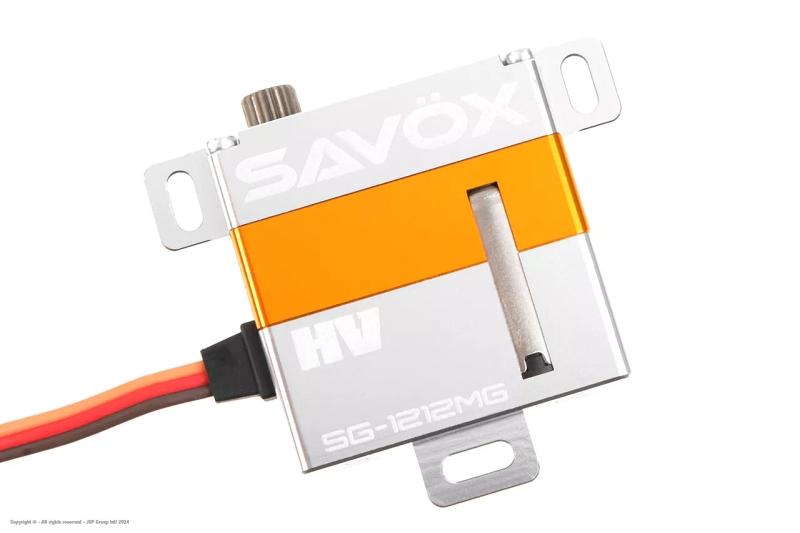

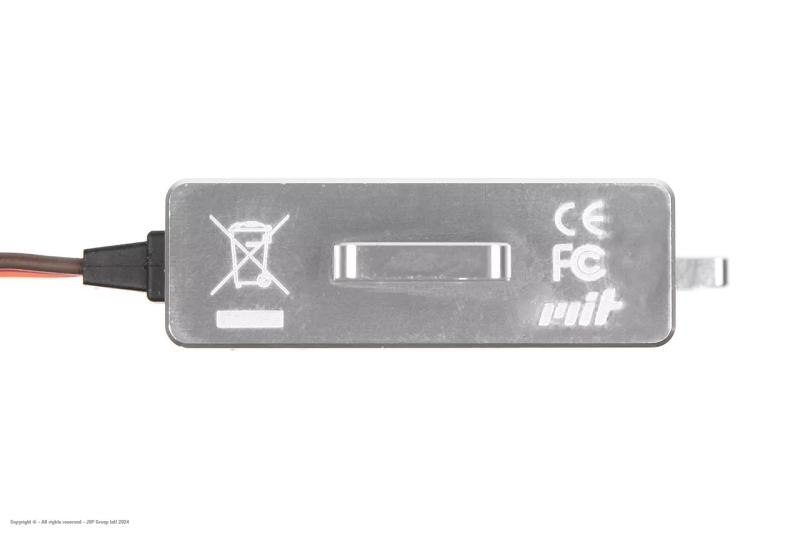

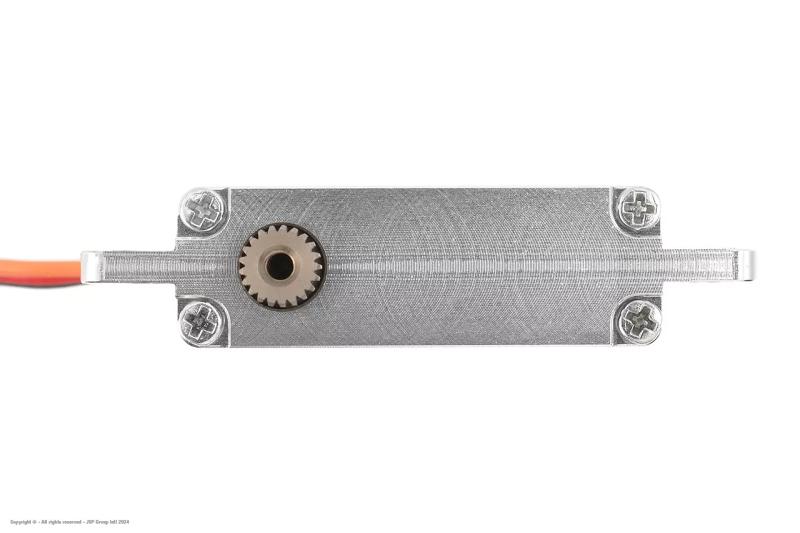

Servo - SG-1212MG - Digital - High Voltage - Coreless Motor - Metal Gear
The Savox SG-1212MG High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution. The ultra slim profile is designed for thin glider wings.
Features: • Torque @ 6V - 4.0kg • Torque @ 7.4V - 5.0kg • Torque @ 8.4V - 6.0kg • Speed @ 6V - .14sec/60 deg • Speed @ 7.4V - .10sec/60 deg • Speed @ 8.4V - .09sec/60 deg
General Info
Item Nr
SG-1212MG
Barcode
4710006993592,00
Brand
Savöx
Servo - Specs
Speed 60°/Sec @ 6.0V
0,14
Speed 60°/Sec @ 7.4V
0,10
Speed 60°/Sec @ 8.4V
0,09
Torque kg/cm @ 6.0V
4,00
Torque kg/cm @ 7.4V
5,00
Torque kg/cm @ 8.4V
6,00
Servo - Dimensions
Servo Type
Low Profile Servo
Spline Type
21T Spline
Length (mm)
30,00
Width (mm)
30,00
Height (mm)
10,00
Weight (g)
27,00
Servo - Technology
Technology
Digital HV
Operating Voltage (V)
6.0V - 8.4V
Servo Motor
Coreless Motor
Servo Protection
Water - Dust Resistant
Servo Positioning
VR Potentiometer - Direct Drive
Servo Gears
Metal Gears
Servo Case
Aluminium Case
Connector
JR Universal + Colored Lead
