Savox

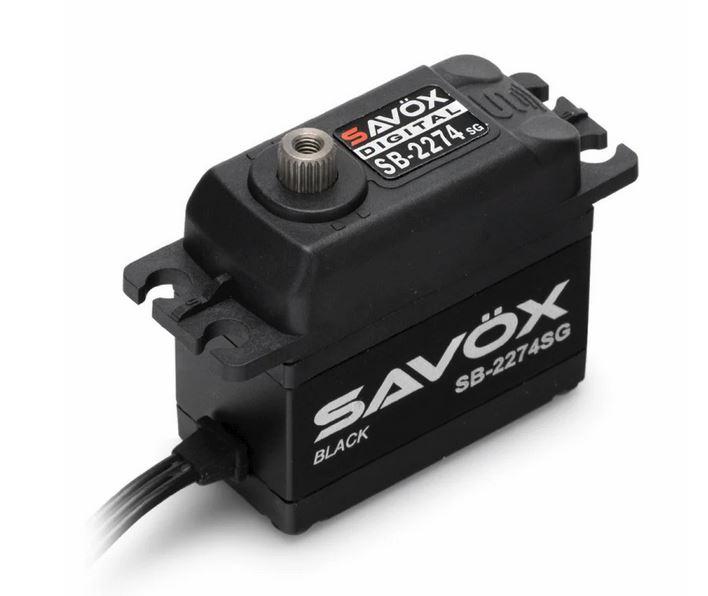

Savox HV STD size 30kg/cm, Digital Brushless Motor Servo, 0.07sec, 8.4V, 69g, 40.3x20.2x38.5mm

Standard Servos Item Code: SB-2274SG-BE

$221.90
Out of stock
Stock held at NZ supplier: 5 or more

The Savox SB-2274SG-BE High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution. Features:

  • Unique steel gear train.
  • Capable of HV operation.
  • Brushless motor for smooth operation and efficiency.
  • Ideal for 1/10, 1/8 buggies, and large scale aircraft.
  • SSR Mode Accepted

Specifications:

  • Torque @ 7.4v - 25.0kg/347.2oz-in
  • Torque @ 8.4v - 30.0kg/416.6oz-in
  • Speed @ 7.4v - 0.08 sec/60 deg
  • Speed @ 8.4v - 0.07 sec/60 deg

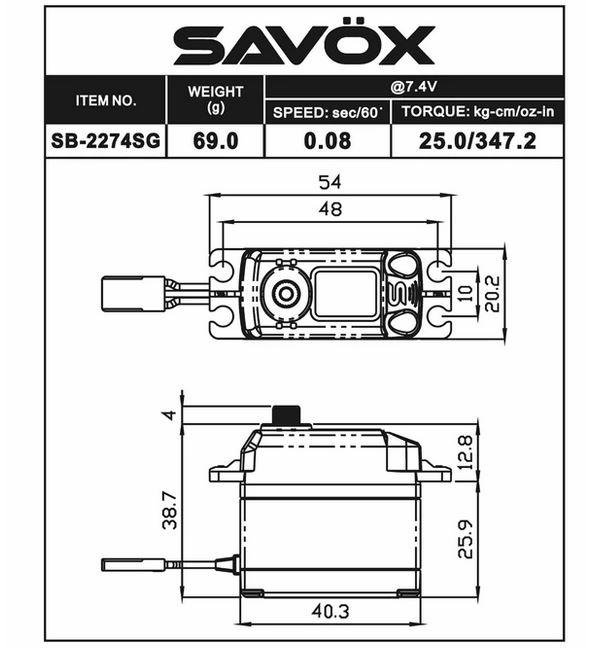

  • Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
  • Weight: 69.0g

Technical Data:

  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 180mA @6.0V, 220mA @7.4V
  • Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 130° (900 → 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless
