Savox

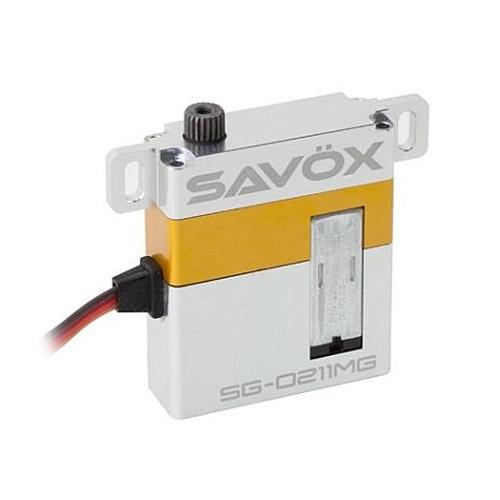

Savox SG-0211MG Thin Glider Wing Servo, 0.13sec, 8kg @6v 29g 30x36x10mm
Mini & Micro Servos Item Code: SG-0211MG
$125.60
Out of stock
Stock held at NZ supplier:
4

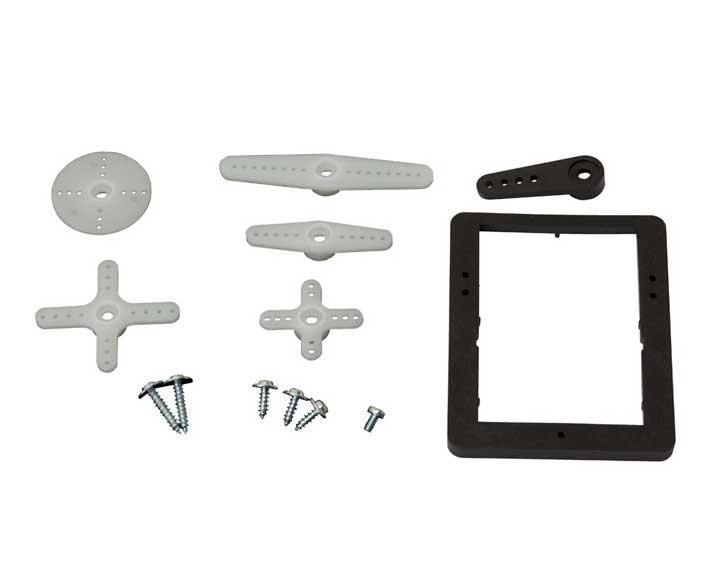

The servo SG-0211MG is only 10mm deep and therefore ideal for the usage in thin wings of speed models and gliders. The full aluminum case makes it light and prevents over-heating. Highest precision for your model is guaranteed by backlash double ball bearing gears. Delivery includes a special servo arm for the use in wings and a solid frame for easy mounting. Technical specifications:
| scope: | airplanes |
| classification: | wing servo |
| driving: | digital |
| high voltage: | no |
| ball bearings: | yes (two) |
| gears: | metal |
| case | full metal |

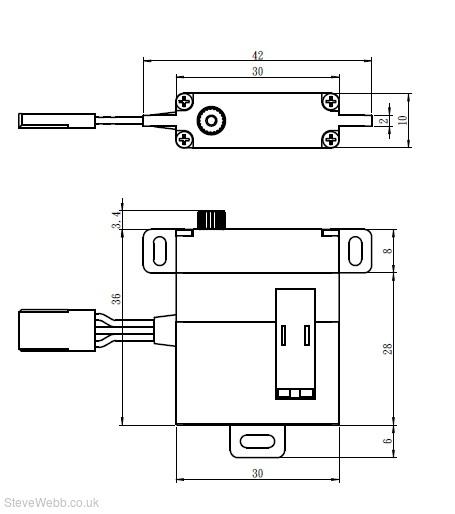

| length ca.: | 30.0 mm |
| width ca.: | 10.0 mm |
| height ca.: | 36.0 mm |
| weight ca.: | 29 g |
| input voltage: | 4.8 - 6.0 Volt |
| torque at 6.0 V ca: | 80 Ncm |
| speed at 6.0 V ca: | 0.13 sec/60° |
| torque at 4.8 V ca: | 60 Ncm |
| speed at 4.8 V ca: | 0.16 sec/60° |
| motor | coreless |
